Nord - 112MP/4 TF (Voltage 380/660)
| Manufacturer | Nord |
|---|---|
| Part Number | 112MP/4 TF (Voltage 380/660) |
| Inner Code | 5041047 |

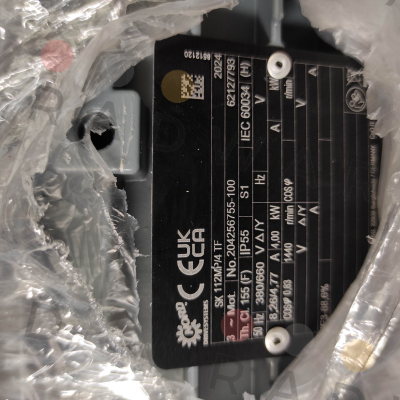

| Technical specification | Product name motor Engine speed 1.440 rpm Power (kW) 4,000 Voltage (V) 380/660 Frequency (Hz) 50 Efficiency class IE3 S1 operating mode Insulation class F Rated current 1 (AMP) 8.26 Rated current 2 (AMP) 4.77 Cosine 1 0.83 Motor position Motor mount WN Pos 098 160S motor flange Gearbox design. M4 ROAD Thermal motor protection cold conductor, 3x155°C Circuit type triangle Motor protection class IP55 Terminal box/cable entry with 3/IV CE logo Yes CCC logo No Mexico NOM certificate No UL No CSA No DoE CC No CSA ev No Alto Rendimento No Korea Energy Label No Color 7031 Blue Gray Paint type solid color Basic painting instruction (2) |
Please contact us to request a price quote for Nord - 112MP/4 TF (Voltage 380/660), or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
