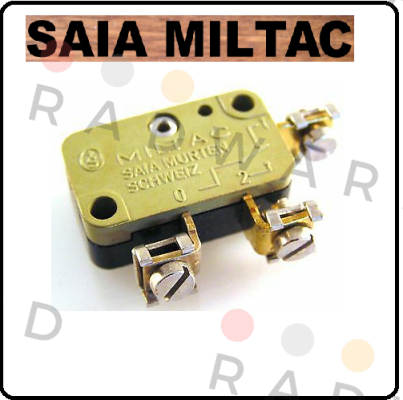

Miltac - MK V11 D15 G.

Manufacturer Miltac
Part Number MK V11 D15 G.
Inner Code 346879
Description (Microswitch MK MK series microswitches - size: Standard - Operating Force: 4N - Release force: 3 N - resting position: 33.6 mm max. - Switching point: tbd 33.1 +/-. mm - differential travel: 0.05 mm - Stopping distance: 2.2 mm - Connections: screw terminals with self-lifting contact plate - switching scheme: changer (CO) - Actuator: D15 actuator, telescopic tappet with a roller (longitudinal) - Contact material. Galvanically gilded (1 micron) solid Silver rivets + tooth More Pen / double contact system - Housing material: GF-reinforced thermoplastic (black) - Approval: UL (cUL and Usul), CE - Protection: IP40 with additional cover for the connections - Special Features: -)
Weight 1

Please contact us to request a price quote for Miltac - MK V11 D15 G. , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Miltac-MK V11 D15 G. price

More products of Miltac

  • PN4K63

    microswitch

  • X01-81~F1

    The switch can be used in Zinser RM321 ring machine

  • X01-H2Z18

    Limit siviç

  • 9300422

    XO-Mikroschalter

  • XO1-T1 / Art.Nr. 9300429

    XO-Mikroschalter / Baugrösse: Standard / Betätigungskraft: 2,88 N / Anschlüsse: Schraubanschlüsse / Schaltschema: Wechsler (CO) / Betätiger: T1-Hebel, Rollenhebel, inverse Funktion, l=20mm / Kontaktwerkstoff: massiver Silberniet / Werkstoff Gehäuse: Duroplast, Polyester-Pressmasse modifiziert UP (weiss) / Zulassung: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV / Schutzart: IP40 / Besonderheit: -

  • XO6-2-F51

    roller switch

  • XGG6-88-Z1

    XG microswitch

  • XO1-F1 9300408

    (XO microswitch - size: Standard - Operating Force: 4.8N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: F1-roller plunger with M15 threaded sleeve for Central fixing, roller position longitudinally or transversely, with extended trailing (3.6 mm) - Contact material: solid Silver rivet - Housing material: thermoset polyester molding compound modified UP (white) - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP40 - Special Features: - as of requested switch, but NOT with galv. gold contacts)

  • XO1-S1

    Item No. 9300427 XO microswitch - size: Standard - Operating Force: 0.47 N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: S1-lever roller lever, l = 46 mm - Contact material: solid Silver rivet - Housing material: thermoset polyester molding compound modified UP (white) - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP40

  • XO6-2-E51

    XO microswitch - size: Standard with metal housing - Operating Force: 4.5N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: E51-Plunger with M12 threaded sleeve for Central fixing, extended stopping distance (5.5 mm) - Contact material: solid Silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP42 - Special Features: -

  • XO6-2-E51G6

    XO microswitch - size: Standard with metal housing - Operating Force: 9.0 N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: E51-Plunger with M12 threaded sleeve for Central fixing and sealing cap, extended Overrun (4.9 mm) - Contact material: solid Silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP64 - Special Features: -

  • XO6-2-E52G6 obsolete, alternative XO6-2-E52

    (XO microswitch - size: Standard with metal housing - Operating Force: 9.0 N - Connections: screw terminals - switching scheme: changer (CO) - Actuator: E52-Plunger with M12 threaded sleeve for Central fixing and sealing cap, extended Overrun (4.8 mm) - Contact material: solid Silver rivet - Approval: UL, CSA, VDE, SEMKO, NEMKO, DEMKO, SEV - Protection: IP64 - Special Features: -)

  • XO6-2-R52G6

    XO Microswitch

  • 9300408 / XO1-F1

    XO-Mikroschalter
