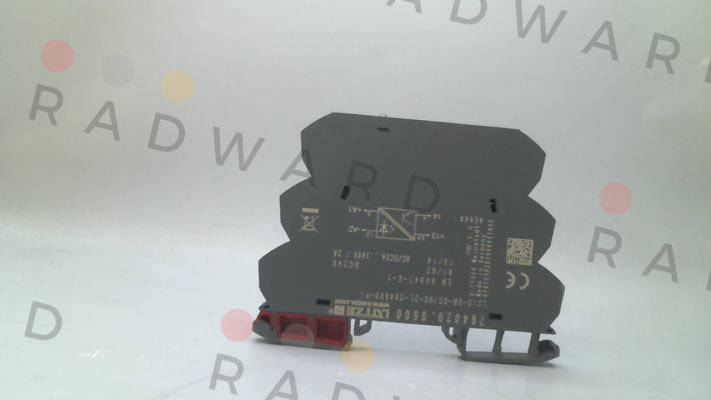

Luetze - 764020.0500
| Manufacturer | Luetze |
|---|---|
| Part Number | 764020.0500 |
| Inner Code | 3813481 |
| Description | LCIS Solid State Relay |
| Technical specification | Rated voltage UNDC 24 V Input voltage rangeDC 16.8 V – 30 V Rated current INDC 9 mA Protection device Input Varistor Reverse diode Status display inputLED green Activation voltage>16.8 V Interrupting voltage<10 V Switching element MosFet N/O contact Min. switching voltageAC/DC 2 V Max. switching voltageAC/DC 253 V Min. switching currentAC/DC 1 mA Max. switching currentAC/DC 2 A @ 100 % ED Derating dependence of assembly installed with ≥20 mm: no derating installed without distance: ≤60 °C: max DC 2 A >60 °C: -25 mA/°C Inrush current10 A/20 ms @ 1 Hz Leak currentAC: <0.2 mA, DC: <1µA Switch-on delay<150 µs @ Imax Shutdown delay<100 µs @ Imax Protection deviceVaristor Short circuitnon short-circuit proof Switching frequency500 Hz General Housing materialPA 6.6 (UL 94 V-0) Color of the housing RAL 7012 basalt grey Protection classIP20 Mounting DIN rail mountable TS35 (EN 60715) Installation positionany Insulation voltage input / output4.0 kVeff Safe isolationyes Clearance/creepage dist. (control/load side)>5.5 mm Operation temperature range-25 °C … +60 °C Storage temperature range-40°C…80°C Dimensions (w × h × d)6,2×93×73 mm Connection type Push-In single wire 0.25 mm2–2.5 mm2 / AWG 20–14 fine stranded wire with ferrule 0.25 mm2–1.5 mm2 / AWG 20–16 StandardsEN 60947-5-1 Approvals cULus in preparation DNV GL in preparation |
| Weight | 0.03 |
Please contact us to request a price quote for Luetze - 764020.0500, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
