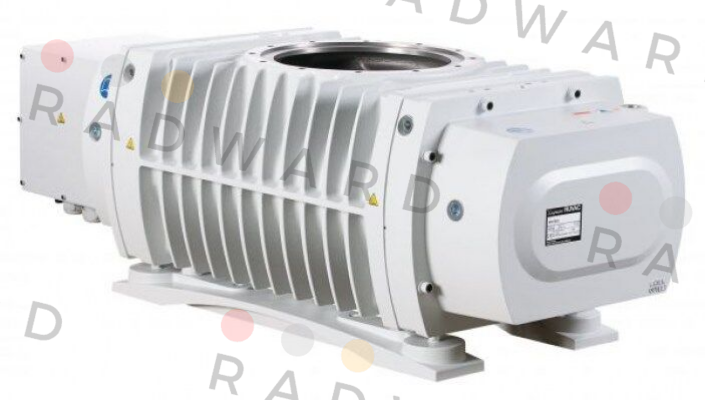

Leybold - RUVAC WH7000 11KW
| Manufacturer | Leybold |
|---|---|
| Part Number | RUVAC WH7000 11KW |
| Inner Code | 3350607 |
| Description | Vacuum Pump |
| Technical specification | 155160 ROTARY PISTON VACUUM PUMPS Features: Hermetically sealed rotary piston vacuum pump Designed for tough industrial use Low space requirement due to compact design Low energy consumption thanks to innovative Motor design with efficiency class IE2 High load capacity due to efficient water cooling Motor for direct connection to the power grid with integrated Cold conductor and overtemperature switch Operation with frequency converter between 20Hz and 70Hz Technical data: Nominal pumping speed: 7000m³/h Maximum suction rate: 9800m³/h (with FU) Max. allowable Pressure difference: 20-30 mbar at 3000 min-1, in continuous operation Integral leak rate: <1x10-5 mbar l/s Permissible ambient temperature: 5-40°C Weight: 650 kg Dimensions (LxWxH): 1433x540x414 Noise level in final pressure mode: <63 dB (A) Lubricant: LVO 210 Motor data: Rated power: 11kW Power consumption at ultimate pressure: 1.2kW Energy efficiency class: IE2 Protection class: IP55 Supply voltage: 360-440V, 50Hz/ 410-500V, 60Hz Rated speed: 3000 min-1 Max. allowable Speed: 4200 min-1 Inlet connection flange: DN 320 ISO-K Outlet connection flange: DN 160 ISO-K Cooling water: Cooling water consumption: 1-3 l/min Cooling water temperature: 5-35°C Cooling water pressure: 2-6 bar “Cooling water connection: 2x 1/4"” internal thread” Please note the allowable pressure differences for different operating conditions in the user manual Box contents: Leybonol LVO210 lubricant provided DN320 strainer with O-ring seal user guide Optional accessories: Weld-on flange DN 320 ISO-K (CN: 26966) Welding flange DN100 ISO-K (CN: 26962) Mounting bracket set for flanges: (CN: 26877) 11kW 400V frequency converter (CN: 155191V) Statistical product number: 84141025 Country of origin: Germany |
| Weight | 1 |
Please contact us to request a price quote for Leybold - RUVAC WH7000 11KW, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
