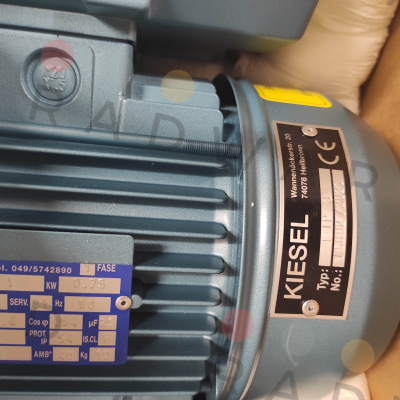

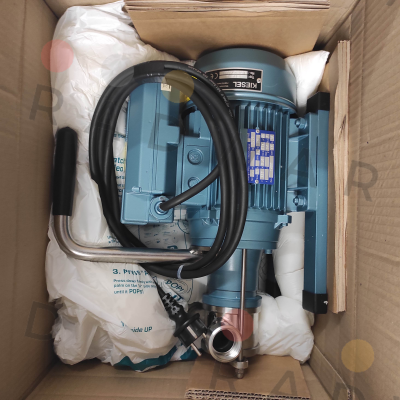

KIESEL - 47599 -IP 03 G 01 230V
| Manufacturer | KIESEL |
|---|---|
| Part Number | 47599 -IP 03 G 01 230V |
| Inner Code | 4840625 |
| Description | transformer draining and filling pump |
| Technical specification | IP03/B/E/1/03/H/0.75/1400/6/W/304L/180°/ Pump type: Pump size: IP03 Design: block design Impeller: standard impeller (solid rubber impeller) Drive type: AC motor Bypass: without bypass Materials and design: Case: stainless steel stainless steel 1.4301 polished, copied Case cover: stainless steel stainless steel 1.4301 polished Slip-on shaft: chrome-nickel steel, stainless steel 1.4301 polished Sealing part: chromium-nickel steel, stainless steel 1.4301 polished Impeller: Neoprene (CR) Case sealing: Perbunan Shaft sealing: single-acting mechanical seal, carbon/ceramic Input side: IG 1" Outgoing side: IG 1" Departure angle: 180° Construction: 2 feet with handle Finish: PEBBLE blue Performance data: Conveying medium: wine, water, juice Temperature: approx. 20°C Viscosity: water-like Suction height given: approx. 3 m Ws Pressure height given: max. 2.5 bar Delivery rate: max. 5.0 m³/h Drive: AC motor Power: 0.75 kW Speed: 1,400 rpm Voltage: 230 V (single phase) frequency: 50 Hz Protection class: IP54 Protection class: ISO F Switch structure: reversible switch Cable length: 3m/ 16A |
Please contact us to request a price quote for KIESEL - 47599 -IP 03 G 01 230V, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
