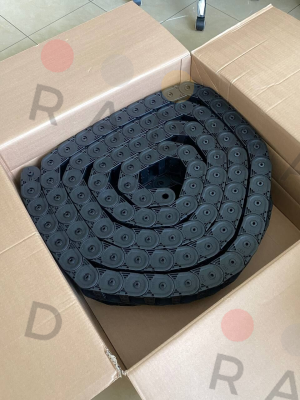

Tsubaki Kabelschlepp - 1665.030.075.075-5985
| Manufacturer | Tsubaki Kabelschlepp |
|---|---|
| Part Number | 1665.030.075.075-5985 |
| Inner Code | 4922059 |
| Custom Code | 84879090 |
| Technical specification | Chain series... BASIC-LINE - UA1665 Chain name... 1665.030.075.075-5985 Material... plastic Chain length Lk... 5,985.0 mm Pitch t... 66.5 mm Number of links n... 90 [pcs] Internal width Bi... 75.0 mm Outer width Bk... 97.0 mm Inner height Hi... 44.0 mm Chain link height hG... 60.0 mm Radius of curvature KR... 75.0 mm Bridge version... 030 (bar can be opened in the outer radius) Bridge layout... full Number of bridges nst... 90 [pcs] Bridge system/interior layout Interior layout... TS0 divider system Separator selection... Variant A - moveable (standard) Divider system per... 2nd link Number of dividers... 3 [pcs] Distribution of dividers... Uniformly distributed chamber widths Divider system - position info Divider distance ax - HU position ax mm Hu ac mm HU type K1:18.0 - VR0 (16.5) K2:19.5 - VR0 (16.5) K3:19.5 - VR0 (16.5) K4:18.0 - VR0 (16.5) |
Please contact us to request a price quote for Tsubaki Kabelschlepp - 1665.030.075.075-5985, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
