ITT NEO DYN - 100 P52CC5
| Manufacturer | ITT NEO DYN |
|---|---|
| Part Number | 100 P52CC5 |
| Inner Code | 1947735 |

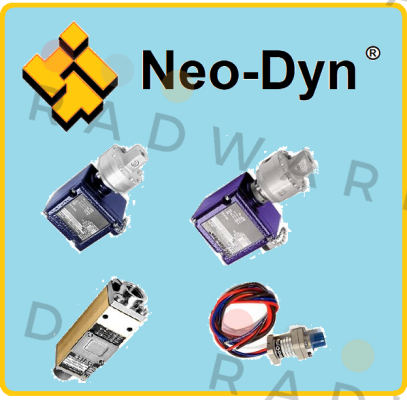

| Description | ITT Neo-Dyn Differential Pressure Switch |
| Technical specification | 100P ITT Neo-Dyn Differential Pressure Switch internal adjustment 5 316 stainless steel port & Diapharagm helaric welded 2 adjustable range 9psig dec. to 150psig inc. (0,6bar dec. to 10,3bar inc.) Deadband approx.6 psig Max recommended system Pressure 3000psig Proofpressure 5000 psid CC electrical switches (DPDT) electrical rating 11A@250 or 125 VAC, 3A Inductive @ 28VDC 5A resistive @ 28VDC 0.5A resistive @125VDC Electrical connection 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18" long leads Process connection 1/2 NPT female connection position see datasheet Media Temp. -40°F to + 300°F Ambient Temp. -40°F to + 180°F 5 Explosion proof, hermetically sealed electrical assembly for Div 2 hazardous Locations Underwriters Laboratories, Inc listed (File E56677) CSA International certified (File LR34146) |
| Weight | 1.3607 |
Please contact us to request a price quote for ITT NEO DYN - 100 P52CC5 , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
