Indexator - 5006285
| Manufacturer | Indexator |
|---|---|
| Part Number | 5006285 |
| Inner Code | 4020485 |
| Description | Gripper rotator |
| Custom Code | 84122981 |

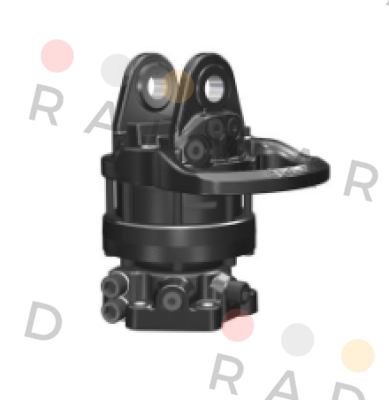

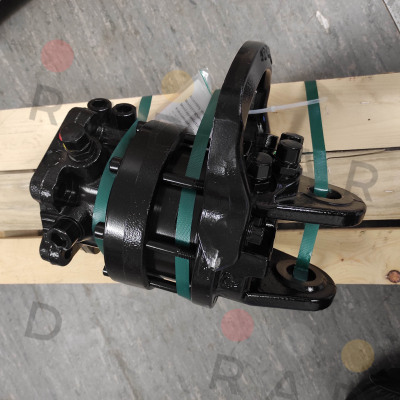

| Technical specification | INDEXATOR gripper rotator GV-6 replaces 5006085 ⦁ Compact, lightweight yet durable rotator ⦁ Very durable construction - vane rotator with unique workmanship ⦁ Suitable for building material cranes, municipal vehicles, light forestry tractors, lightweight pulleys, rear trailers ⦁ 6,000 kg max. static load, 2,500 kg max. dynamic load ⦁ Torque of 1400 Nm at 200 bar ⦁ Low oil consumption 25 l/min ⦁ Compact and lightweight at just 44.9 kg ⦁ Top mount: 2 lugs with 80.5 mm spacing and 35 mm hole for stud ⦁ Bottom mount: 6-hole flange 173 mm diameter (6x17-173 mm) ⦁ Hydraulic connections at the top 4 x BSP 1/2" IG all on one side, one hose protection bracket ⦁ Hydraulic connections at the bottom 2 x BSP 1/2" IG in the shaft axially downwards and the same channel laterally (radially) in the flange 2 x BSP 1/2" with covers closed (please use a radial nipple set for connection, item no. 5212051 order) |
Please contact us to request a price quote for Indexator - 5006285, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
