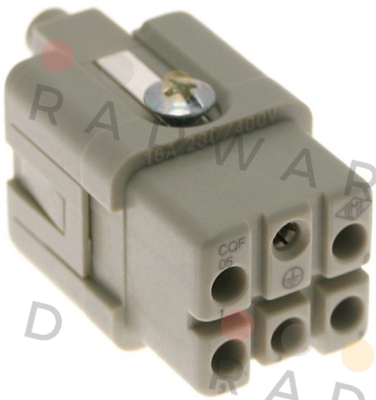

Ilme - CQF05
| Manufacturer | Ilme |
|---|---|
| Part Number | CQF05 |
| Inner Code | 239772 |
| Description | insert |

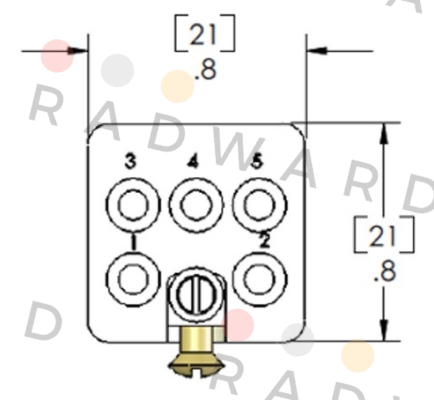

| Technical specification | Housing- Thermoplastic Gender- Female Pin Count- 5 + Ground Rated Current- 16 Amps Rated Voltage- 600 V ILME Series- CQ Housing Type- Standard Operating Temperature- -40 C to 125 C (-40 F to 257 F) Insert Dimension- 21.21 Enclosure Dimension- 21.21 Termination- Crimp Pin Upper AWG- 12 Lower AWG- 20 Insulation Resistance- >= 10GOhm Mechanical Life- >= 500 Cycles Contact Resistance- <= 1mOhm Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger) Approvals- UL, CSA, CCC, GL, GOST |
| Weight | 0.05 |
Please contact us to request a price quote for Ilme - CQF05, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
