Ifm - II5968
| Manufacturer | Ifm |
|---|---|
| Part Number | II5968 |
| Inner Code | 1119742 |

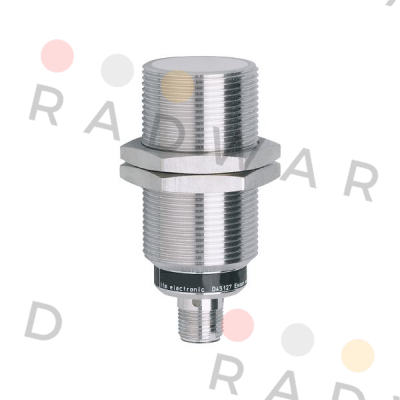

| Description | Inductive Sensor. |
| Technical specification | IIK3015BBPKG/US-104-DPS, Origin: DEUTSCHLAND, Custom Tariff No. 85365019, Weight in KG: 0,188 Product characteristics Electrical design PNP Output function normally open Sensing range [mm] 15 Housing Threaded type Dimensions [mm] M30 x 1.5 Application System Increased sensing range Electrical data Operating voltage [V] 10...36 DC Current consumption [mA] 15; (24 V) Protection class II Reverse polarity protection yes Outputs Electrical design PNP Output function normally open Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 250 Switching frequency DC [Hz] 250 Short-circuit protection yes Type of short-circuit protection yes (non-latching) Overload protection yes Monitoring range Sensing range [mm] 15 Operating distance [mm] 0...12.1 Increased sensing range yes Accuracy / deviations Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 Hysteresis [% of Sr] 1...15 |
| Weight | 1 |
Please contact us to request a price quote for Ifm - II5968, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
