Ifm - II5944
| Manufacturer | Ifm |
|---|---|
| Part Number | II5944 |
| Inner Code | 1119733 |

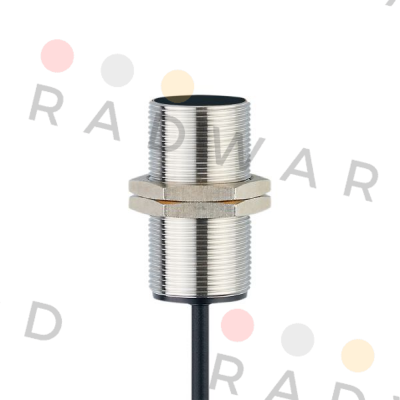

| Description | Inductive sensor. |
| Custom Code | 85365019 |
| Technical specification | Induktiver Sensor; M30 x 1,5 / L = 58 mm; Schaltabst Product characteristics Electrical design PNP Output function normally open Sensing range [mm] 12 Housing threaded type Dimensions [mm] M30 x 1.5 / L = 58 Application Special feature Increased sensing range Electrical data Operating voltage [V] 10...36 DC Current consumption [mA] < 15 Protection class II Reverse polarity protection yes Outputs Electrical design PNP Output function normally open Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 250 Switching frequency DC [Hz] 100 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Detection zone Sensing range [mm] 12 Operating distance [mm] 0...9.72 Increased sensing range yes Accuracy / deviations Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 Hysteresis [% of Sr] 1...20 Operating conditions Ambient temperature [°C] -40...70 Protection IP 69K; (cable plugs: IP 68) |
| Weight | 1 |
Please contact us to request a price quote for Ifm - II5944, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
