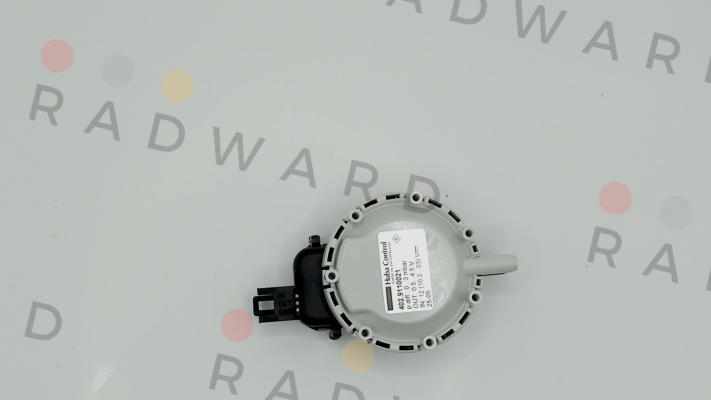

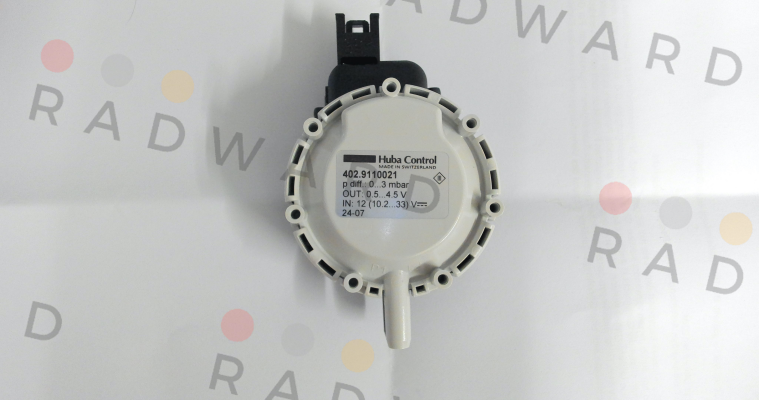

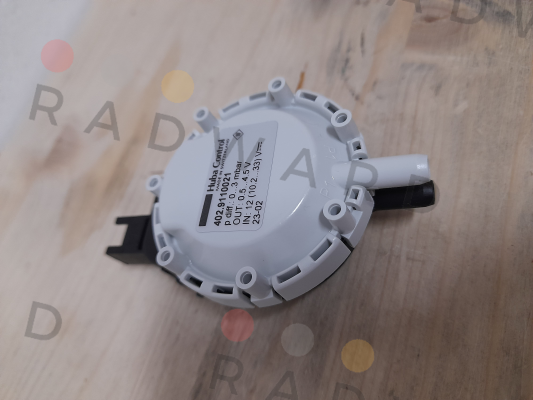

Huba Control - 402.9110021
| Manufacturer | Huba Control |
|---|---|
| Part Number | 402.9110021 |
| Inner Code | 4730913 |
| Description | Relative and differential pressure transmitter |
| Technical specification | Pressure range Relative and differential 0 ... 3 – 50 mbar Operating conditions Medium Air and neutral gases Temperature Medium / ambient 0 ... +70 ºC Storage -30 ... +70 ºC Tolerable overload 100 mbar Rupture pressure at room temperature 200 mbar at 70 ºC 150 mbar Materials in contact with the medium Case construction Polycarbonate (PC) / Polyamide (PA) Diaphragm Silicone Sensor Ceramic Al2O3 (96%) Electrical overview Output 0.5 ... 4.5 V Power supply 10.2 ... 33.0 VDC Load > 15 kOhm (to GND) Current consumption < 8 mA Polarity reversal protection Connector and pcb version mechanically protected Electromagnetic compatibility The product is designed exclusively for installation in equipment. The customer is responsible for CE conformity. Dynamic response Response time < 10 ms Load cycle < 10 Hz Protection standard IP 00 Electrical connections Solderable pin in circuit board 3 pole onnector RAST 2.5 Adapter plate Mounted and soldered Pressure connection Pipe Ø 6.2 mm Mounting instruction Installation arrangement Diaphragm vertical Presssure connections facing downward Diapgragm horizontal Pressure connection P1 upwards Mounting Snap fitting 1) Adapter Mounting bracket |
Please contact us to request a price quote for Huba Control - 402.9110021, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
