Honsberg - UZM-040GM200-959415
| Manufacturer | Honsberg |
|---|---|
| Part Number | UZM-040GM200-959415 |
| Inner Code | 1302705 |
| Description | flow indicator |
| Custom Code | 85365080 |

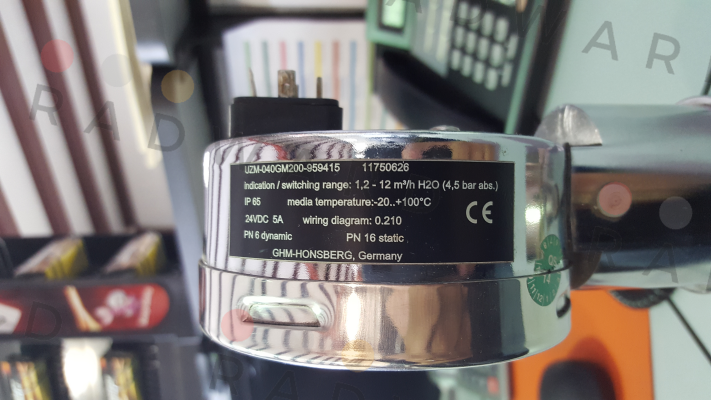

| Technical specification | 959415 UZM flow indicator Nominal size: DN 040 Connection: internal thread NPT 1 1/2 Case: nickel-plated brass Pressure resistance: PN 6 dynamic, PN 16 static Media temperature: -20.. +100 °C Ambient temperature: -20.. +70 °C Measurement range: 1.2 - 12 m³/h H2O Operating pressure: 4.5 bar abs. Flow direction: Vertical from above Display positioning: left, front reading Limit value device: integrated in the scale housing El. -Connection: DIN 43650-A/ISO 4400 plug Electrical contact: micro switch Contact rating: 24 V DC 5 A Connection diagram: Changer - No. 0.210 Protection class: IP 65 Signal lamp: red in scale housing Nameplates with laser printer Article number: 85365080 Country of origin: Germany |
| Weight | 3.1 |
Please contact us to request a price quote for Honsberg - UZM-040GM200-959415, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
