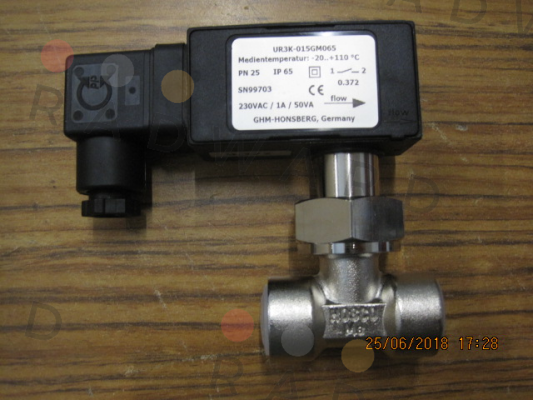

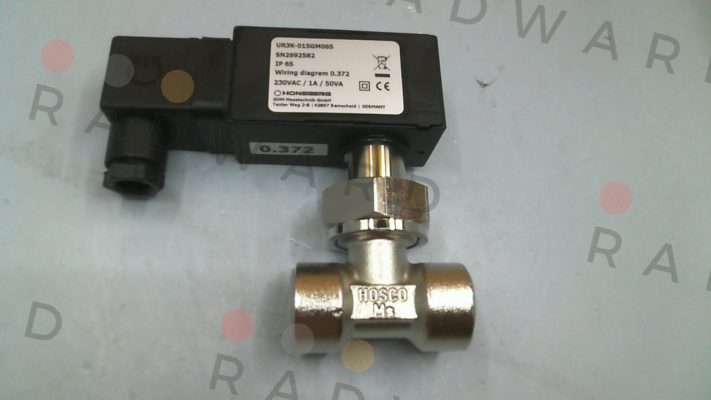

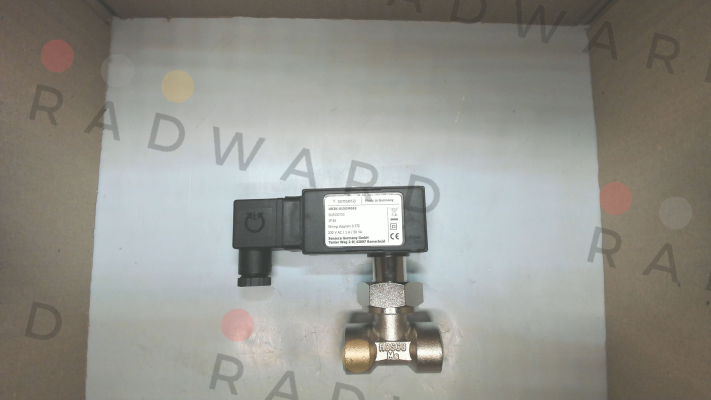

Honsberg - UR3K-015GM065
| Manufacturer | Honsberg |
|---|---|
| Part Number | UR3K-015GM065 |
| Inner Code | 541855 |
| Description | Pressure switch |
| Custom Code | 90261089 |

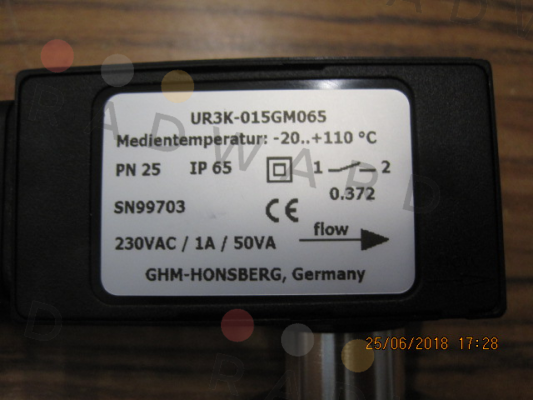

| Technical specification | flow monitor Type: UR3K Nominal diameter: DN 015 Connection: internal thread G 1/2 Housing: nickel-plated brass Connection material: nickel-plated brass Pressure resistance: PN 25 Media temperature: -20.. +110 °C Ambient temperature: -20.. +70 °C Switching range: 5 - 6.5 l/min H2O Switch head: plastic Adjustment: adjustment screw El. Connection: DIN 43650-A/ISO 4400 plug El. Contact: reed switch Contact load capacity: 230 V AC 1 A 50 VA Connection diagram: Closer - No. 0.372 Protection class: IP 65 Flow direction: horizontal from left |
| Weight | 0.3 |
Please contact us to request a price quote for Honsberg - UR3K-015GM065, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
