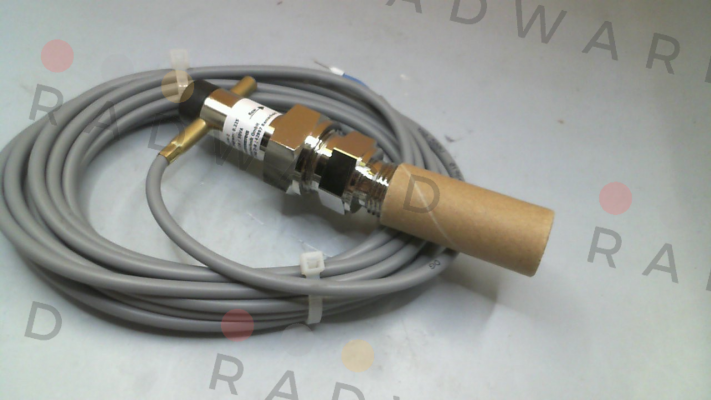

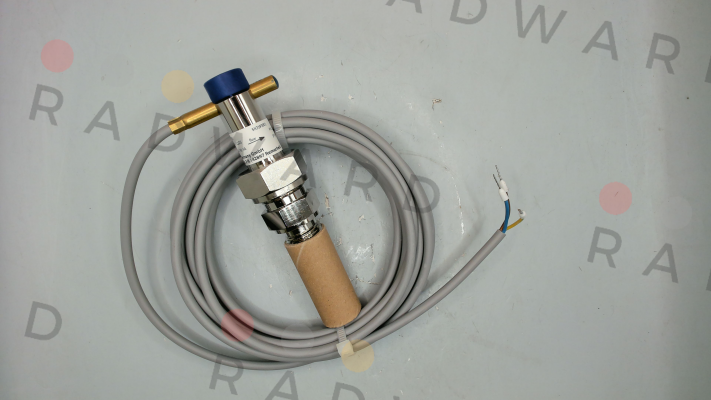

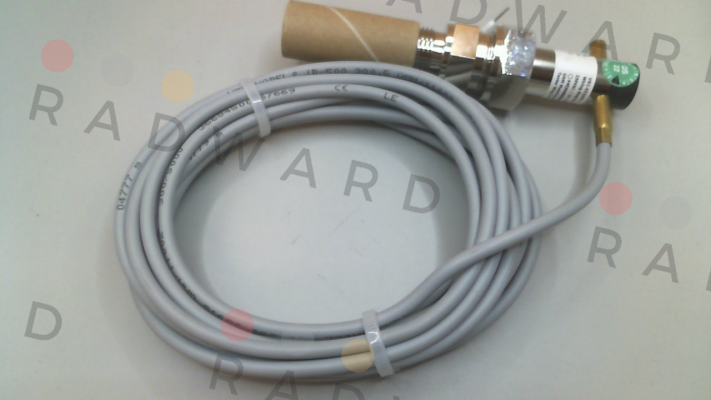

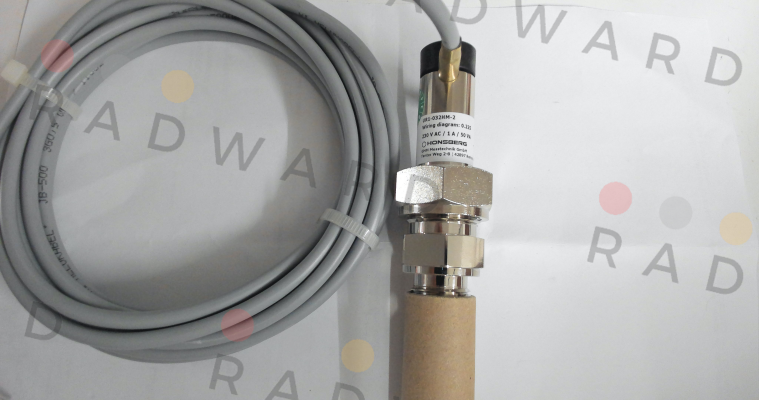

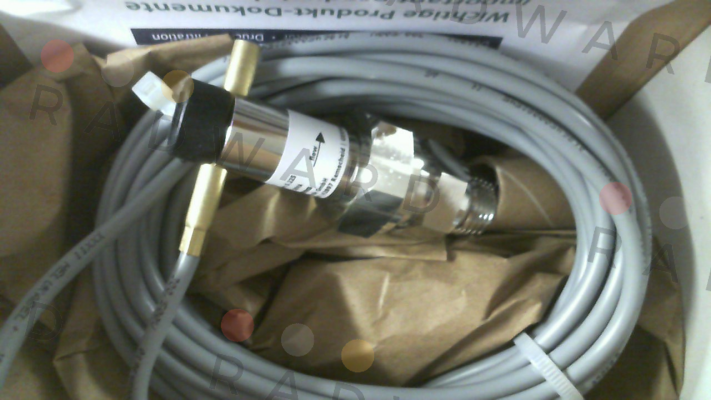

Honsberg - UR1-032HM-2
| Manufacturer | Honsberg |
|---|---|
| Part Number | UR1-032HM-2 |
| Inner Code | 3369796 |
| Description | Flow monitor |
| Custom Code | 85365080 |
| Technical specification | 942897 Nominal size: For DN 50... 150 Connection: union nut and spigot G ¾ A Connection type: screw-in thread G ½ A Body: nickel-plated brass Compressive strength: PN 25 Seal: NBR Media temperature: -20... +110 °C Ambient temperature: -20... +70 °C Switching range: Depending on the nominal diameter Special adjustment range: special paddle Z. 17.2-00754 Contact tube: brass Adjustment: grub screw El. Connection: cable 5 m Contact power: 230 V AC 1 A 50 VA Connection pattern: N/NC contact, connection pattern no. 0.225 Degree of protection: IP65 Flow direction: Horizontal from left |
| Weight | 0.455 |
Please contact us to request a price quote for Honsberg - UR1-032HM-2, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
