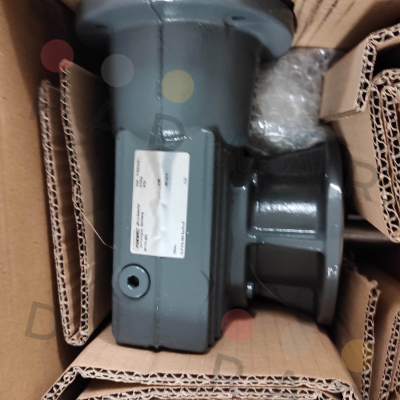

HIMMEL - SF11K-(90) / 2010000130
| Manufacturer | HIMMEL |
|---|---|
| Part Number | SF11K-(90) / 2010000130 |
| Inner Code | 4952652 |
| Description | worm gears |
| Custom Code | 84834025 |
| Technical specification | Dimension sheet: SF16K/7281 Gear type/Type: HIMMEL® solo worm gear/ HIMMEL® Solo Worm Gear Transmission Type/Type: SF11K- (90) Dimension sheet: SF0K/7281 Translation/Ratio [i]: 56.00 Color/colour: RAL 7011 Iron Grey 2K/Iron Grey 2K-PUR Corrosivity category/corrosion protection: C1: i.a.A. DIN EN ISO 12944-2/HN716.21 Paint layer thickness [μm]: 60-80 Protection class: IP54 Design/mounting position: B5-02-A Output torque/ Output torque [Nm]: 70 Direction of rotation: right/right [CW] Output shaft transmission/ Output shaft [mm; inch]: V20x40 Gearbox bearing: assigned bearings Oil type: CLP PG 460 Synth.oil Oil quantity [l]: 0.30 Flange diameter/Flange diameter [mm; inch]: 120 Shaft material/Shaft material: 42CrMo4 Gearbox sealing/Sealing: shaft seal ring (WDR)/shaft seal ring |
Please contact us to request a price quote for HIMMEL - SF11K-(90) / 2010000130, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
