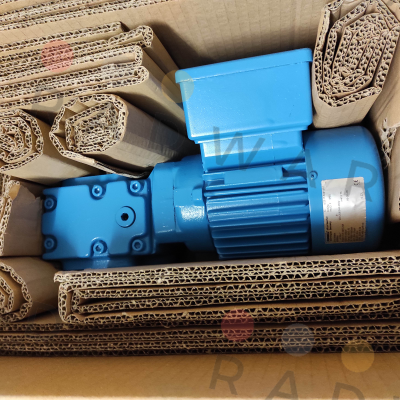

HIMMEL - C10-G56M4
| Manufacturer | HIMMEL |
|---|---|
| Part Number | C10-G56M4 |
| Inner Code | 4246918 |
| Description | Worm gear motor |
| Custom Code | 85015100 |
| Technical specification | 2010000956 Dimension sheet: C14 Transmission Type/Type: HIMMEL® Worm Gear Motor/HIMMEL® -worm gear Transmission Type/Type: C10-G56M4 Dimension diagram/Dimension sheet: C14 Output Speed [rpm; 1/rpm]: 3.90//4.60 Translation/Ratio [i]: 348.23 Colour: RAL 7011 Iron Grey 2K Iron Grey Iron Grey 2K-PUR Corrosivity category /corrosion protection: C1: I.A.A. DIN EN ISO 12944-2 Layer thickness varnish/paint layer thickness [μm]: 60-80 Protection class/protection class: IP54 Type/mounting position: B3-00-B Output torque [Nm]: 64.3//53.9 Direction of rotation downcome/output direction of rotation: left/left Output Shaft Gear/Output Shaft [mm; Inch]: V20x36 Storage gearbox/Bearing: assigned bearing/ assigned bearings Oil Type: CLP PG 460 synth.Oil Oil Quantity/ Oil quantity [l]: 0.15 Shaft material/shaft material: 42CrMo4 Sealing: Shaft Seal (WDR)/shaft seal ring Electrical design: CE Poles /Poles: 4 Nominal Frequency [Hz]: 50//60 Rated Voltage/Nominal Voltage [V]: 200-240/380-420//220-277/380-480 Circuit/Wiring: S100//S100 (D/Y//D/Y) Rated wattage/Nominal Power [kW]: 0.09//0.09 Nomine/Engine Speed Nom. [1/rpm]: 1350//1610 Rated Current/Nominal Current In [A]: 0.70/0.40//0.70/0.40 cosphi/cosphi: 0.68 KK Location/Terminal box position: 2A KK Execution/ Terminal box type: Plastic/ plastic Winding protection/Motor protector: without /without Output Shaft Motor /Output Shaft [mm; Inch]: V11x24.5 Sealing Motor/Sealing Motor: Normal/ Normal Insulation class/Insulation class: F Mode of operation/Duty type: S1 Fan/Fan: Plastic/ Plastic |
Please contact us to request a price quote for HIMMEL - C10-G56M4, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
