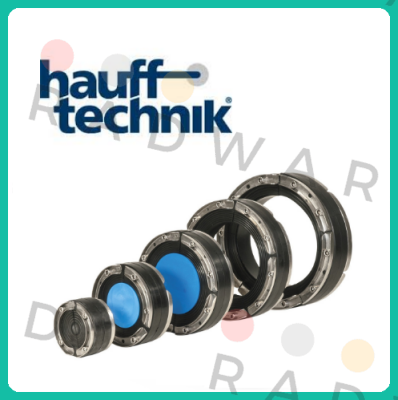

HAUFF-TECHNIK - HSI150 1x1 GSM110/200- (3030303288)
| Manufacturer | HAUFF-TECHNIK |
|---|---|
| Part Number | HSI150 1x1 GSM110/200- (3030303288) |
| Inner Code | 5049307 |
| Technical specification | InFach sealing pack for embedding, with rubber socket for Connection of smooth cable protection pipes For flush installation, allows one-sided gas and waterproof connection of cable protection pipes without additional pipe connection components and the one-sided connection of System seals for cables. Package building is on site possible (when forming packages, we recommend the HSI-AH 40 spacer) Features: Quality seal: Factory tightness. Control option in case of accidental or unauthorised opening of the sealing cover; Pressure tightness to concrete due to a total of three sprayed 3 web seals EAN/GTIN: 4052487222853 Classification: Connection design: Rubber push-in socket and bayonet ; Center distance: 210 mm ; Number of passages Horizontal: 1 ST ; Number of passagesVertical: 1 ST ; Outer dimension width: 220.0 mm ; Outer dimension height: 200.7 mm ; Color: Red Height:200.7 mm ; Color: Red ; Nominal diameter: 150 mm ;Frame dimension/external dimension w*h: 220X220 ; Protective tube D: 110 mm ;Wall thickness: 200 mm ; Mounting frame material: ABS/TPE ;Tube material: PVC ;Material of cover 1: ABS/TPE |
Please contact us to request a price quote for HAUFF-TECHNIK - HSI150 1x1 GSM110/200- (3030303288), or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
