Groschopp - KM 94-60
| Manufacturer | Groschopp |
|---|---|
| Part Number | KM 94-60 |
| Inner Code | 535572 |
| Description | DC GEAR MOTOR |

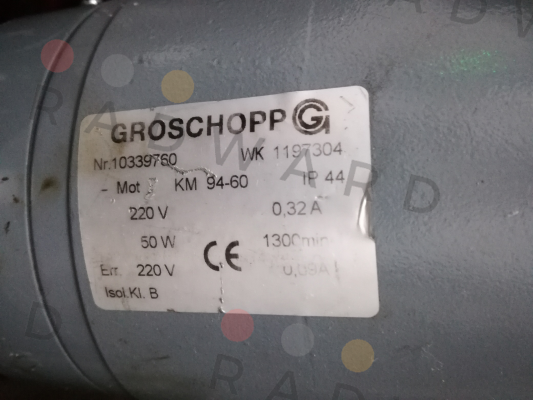

| Technical specification | 220/220 V DC double circuit, 1300U, 50W, B3, IP44, Motor wound according to WK 1197304, left-right rotation according to circuit diagram S12-0201-32, mounted with: SINGLE WORM GEAR Type: E3 i= 56:1 n2= 23.2 rpm, M2= 5.1 Nm Service factor fB= 1.57 Gear shaft on both sides: Ø 12 mm h6 x 30 mm long with groove+key A4x4x20 mm according to DIN 6885 sheet 1 Weight: 4.90 kg Lubricant: Centoplex H/0 Fat capacity: 80+5 g Terminal box position: 11 (right) Transmission mounting position: 1 design and dimensions Drawing no.: 2011-05-001091 |
| Weight | 5 |
Please contact us to request a price quote for Groschopp - KM 94-60, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
