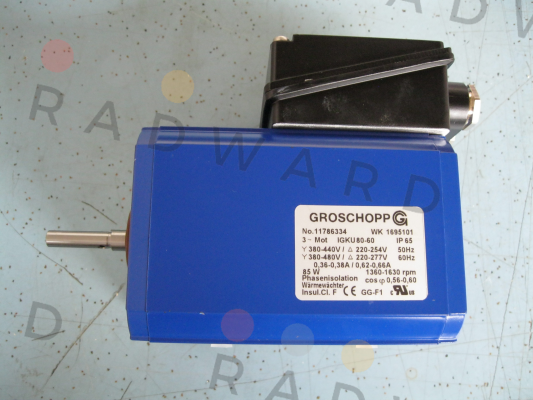

Groschopp - IGKU 80-60

Manufacturer Groschopp
Part Number IGKU 80-60
Inner Code 3422028
Description Gear Motor

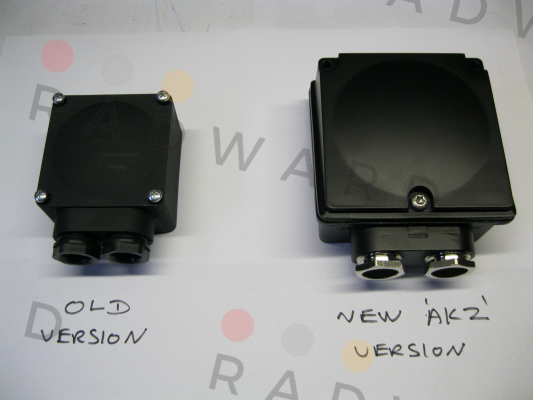

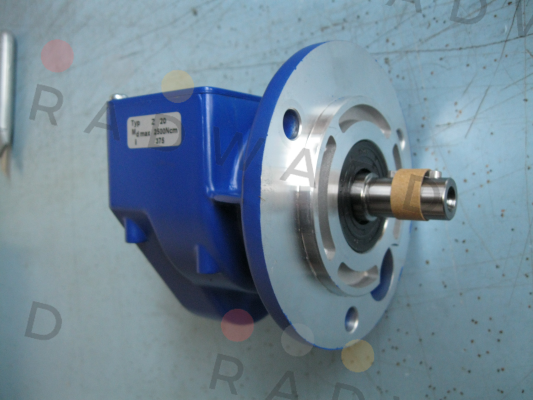

Technical specification 380-440 / 220-254 V, 50 Hz - 380-480 / 220-277 V, 60 Hz - 0.36-0.38 / 0.62-0.66 A. - 1360-1630 U, 85 W, B14, IP65, - Motor wound according to WK 1695101, - Left / right rotation according to circuit diagram S61-0701-30, Motor with phase isolation, Motor UR / UL Conform, Motor with terminal box AK2 and 6-pin terminal board, Circuit diagram in the terminal box, Motor with heat monitor 140 ° C as opener Connections to WAGO terminal, mounted with: . . . . WORM SPUR GEAR Type: Z20 i = 275: 1 n2 = 4.94 rpm, M2 = 62.00 Nm Service factor fB = 0.40 Flange: Ø 110 mm, flange and shaft on the right Gear shaft: Ø 14 mm k6 x 35 mm long with groove + feather key A5x5x20 mm according to DIN 6885 sheet 1 with axial thread M5 according to DIN 332-D Painting according to RAL 5002 - ultramarine blue Lubricant: Centoplex H / 0 Fat filling quantity: 130 + 5 g - Terminal box position: 44 Gearbox mounting position: 1 Execution and dimensions according to Drawing no .: 2012-06-001532
Weight 5.4

Please contact us to request a price quote for Groschopp - IGKU 80-60, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Groschopp-IGKU 80-60 price

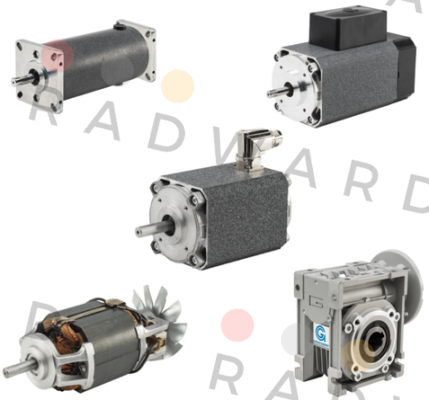

More products of Groschopp
