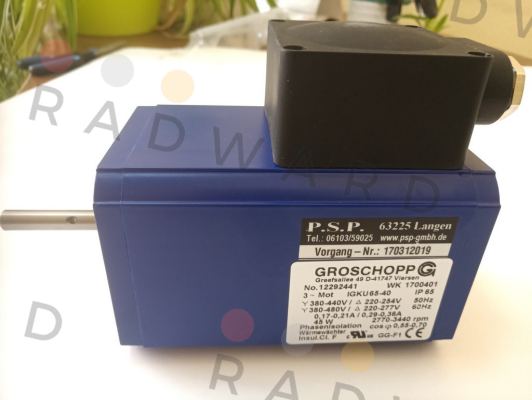

Groschopp - IGKU 65-40
| Manufacturer | Groschopp |
|---|---|
| Part Number | IGKU 65-40 |
| Inner Code | 573918 |
| Description | Motor |
| Custom Code | 85015100 |
| Technical specification | AC ASYNCHRONOUS GEAR MOTOR Type: IGKU 65-40, 380-440/220-254 V, 50 Hz 380-480/220-277 V, 60 Hz 0.17-0.21/0.29-0.36 A 2770-3440 U, 45 W, B3, IP65, motor wound according to WK 17004-01, left-right rotation, circuit diagram S61-0701-24 with special foot for adaptation to DM 70-40 engine mounting dimensions UR/UL compliant engine, motor with phase insulation, Motor with K3 terminal box and 6-pin clipboard, circuit diagram in the terminal box, Motor with 140°C heat controller as an opener mounted with: SINGLE WORM GEAR Type: Z1 i= 100:1 n2 = 27 rpm, M2 = 3.6 Nm Operating factor fB= 0.83 Gear shaft: Ø 7 mm h6 x 25 mm long Weight: 2.20 kg Lubricant: Centoplex H/0 Fat capacity: 25+5 g Terminal box location: 44 (above) Gearbox mounting system: 1 Design and dimensions according to Drawing No.: 2016-10-003127 |
| Weight | 2.2 |
Please contact us to request a price quote for Groschopp - IGKU 65-40, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
