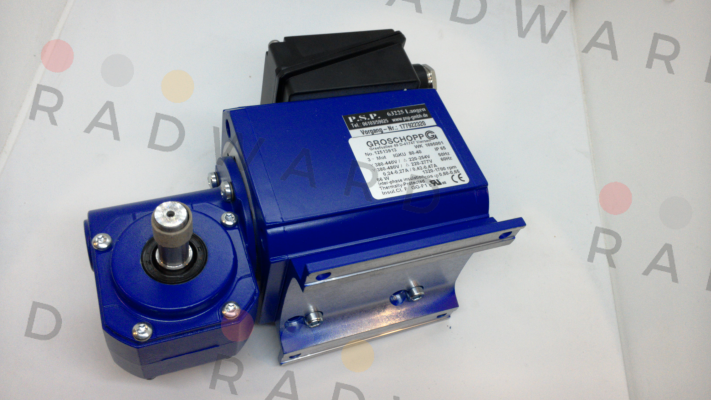

Groschopp - IGKU 80-40 + VE31-D-B-25
| Manufacturer | Groschopp |
|---|---|
| Part Number | IGKU 80-40 + VE31-D-B-25 |
| Inner Code | 3857689 |
| Description | AC ASYNCHRONOUS GEAR MOTOR |
| Technical specification | Type: IGKU 80-40, 380-440/220-254 V, 50 Hz 380-480/220-277 V, 60 Hz 1320-1620 U, 66 W, B3 (MG90), IP65 motor wound according to WK 1695001, left/clockwise rotation according to diagram S61-0701-30, with special foot for adaptation to mounting dimensions of the DM 90-40 engine engine UR/UL conform, motor with phase isolation, motor with terminal box AK2, and 6-pin clipboard, wiring diagram in terminal box, Motor with heat monitor 140°C as opener connections on WAGO terminal, mounted with: SIMPLE-WORM GEAR type: VE31-D-B-25 i= 38:1 n2 = 34.7 rpm, M2 = 8.7 Nm Operating factor fB= 1,03 Transmission shaft on both sides: Ø 12 h6 x 31 mm long with groove+feather key A4x4x20 mm according to DIN 6885 sheet1 Paintwork according to RAL 5002 - ultramarine blue Weight: 3.75 kgs Lubricant: Centoplex H/0 Fat filling quantity: 35+5g Terminal box position: 44 (top) Gear attachment: 3 Design and dimensions according to Drawing no.: 2020-05-005645 |
Please contact us to request a price quote for Groschopp - IGKU 80-40 + VE31-D-B-25, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
