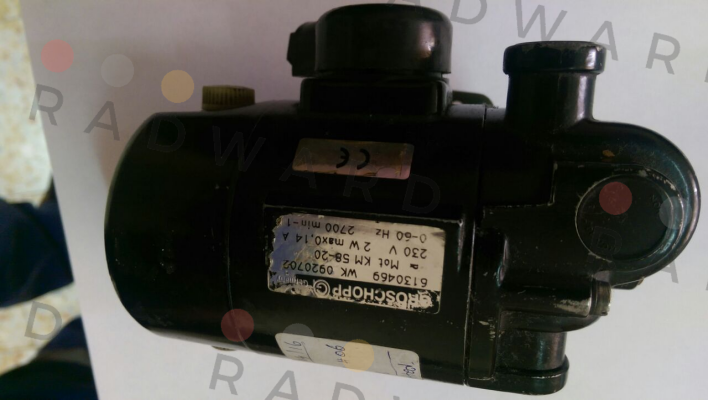

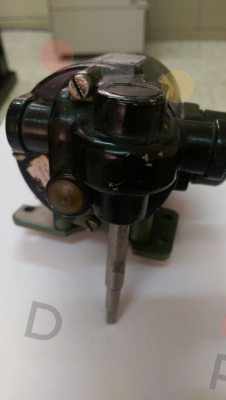

| Manufacturer | Groschopp |
|---|---|
| Part Number | 6130469 WK 0920702 |
| Inner Code | 1784786 |
| Description | Motor |
| Weight | 1 |
Please contact us to request a price quote for Groschopp - 6130469 WK 0920702 , or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
THREE-GEAR-MOTOR 380-440 / 220-254 V, 50 Hz 380-480 / 220-277 V, 60 Hz 1320-1620 U, 66 W, B3 (MG90), IP65, Motor wound after WW 1695001, Left / right scroll diagram S61-0701-30, with Sonderfuß to adapt to Mounting dimensions of the motor DM 90-40 Motor UR UL Conform, Motor with phase insulation, Motor with terminal box AK 2, and 6-pole terminal board, Diagram in the terminal box, Engine with heat guard 140 ° C as normally closed Connectors WAGO terminal, mounted with: DOUBLE WORM GEAR Type: Z2 i = 1 140: 1 n2 = / min 1.16 U., M2 = 38 Nm Service factor fB = 0.24 Gear shaft right Ø 12mm x 30mm long h6 with groove and adjusting spring A4x4x20 mm according to DIN 6885 Sheet1 Terminal box position: 14 (right) Transmission Mounting position: 2 Design and dimensions to drawing 2010-03-000555 However, gear pivoted about 90 ° to the right,
Motor wound after WW 1695201
Left-right rotation, diagram S61-0702-10,
motor
motor
AC-ASYNCHRON-GETRIEBE-MOTOR
400/230 V, 50-60 Hz1300-1700 U, 170 W, B3, IP54,
AC gearmotors
THREE-GEAR-MOTOR 400/230 V, 50-60 Hz 1300-1600 U, 155 W, B3, IP54, Motor wound after WW 1695501, Left-right rotation, diagram S61-0101-19, UL / UR-friendly version mounted with: DOUBLE WORM GEAR Type: Z3 i = 49: 1 Gear shaft made of stainless steel: Ø 12 mm h6 x 28 mm long with groove and adjusting spring A4x4x20 mm according to DIN 6885 Sheet1 Coating according to RAL 5002 - ultramarine Max. perm. torque 900 Ncm
DC motor
COMMUTATOR BUILT-IN MOTOR SERIES FINAL CIRCUIT Type: KE 70-40 220-230V, 0-50 Hz, 6000U, 250 W KB, B14, IP00, Motor wound after WW 50138-04-03 Left / Right Scroll diagram K01-0101-01 Motor with flange-brush holder mounted with: HELICAL GEAR TYPE: SG80 B3 / B14 i = 25: 1, 3-stage, Max. perm. Torque 8 Nm Painting: no Design and dimensions to Drawing K8234 "D"
COMMUTATOR MOUNTING ENGINE Type: KE 70-40, 48/60 V DC 5000 rpm, 380 W S2 10s, B14, IP00, Motor wound after WW 5011904, Motor with flange-brush holder
Technical Characteristics Motor
Technical Characteristics Motor
(DC-GEAR-MOTOR Type: KG 87-60, 160/190 V DC Ne, 3000 rpm, 110 W, B3, IP54, Motor wound after WW 5031304, Left / right scroll diagram K 09-0101-01, for VE31 / Z3 mounted gearing Weight: 3.40 kg Terminal box: 14)
Commutator MOTOR HOUSING
Governor motor
ELECTRIC MOTOR
Motor
(ratio TBA) Geared Motor, 48V AC/DC, 0-60Hz, 2W, 2700rpm, without push fit gearbox shaft
Geared Motor, 160/190V, 110W, 3000rpm, IP54
