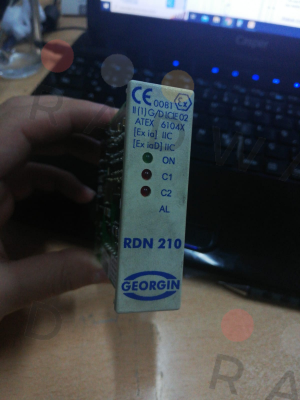

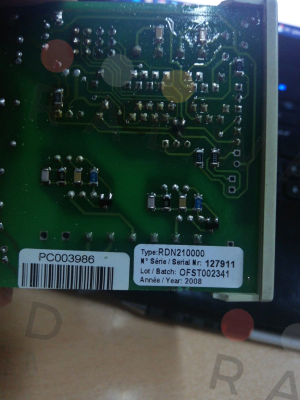

Georgin - RDN 210000

Manufacturer Georgin
Part Number RDN 210000
Inner Code 4719261
Description Isolation amplifier
Custom Code 8504 3180
Technical specification Number: 30164 RDN 210 000 Isolation Amplifier 2 230VAC channels 2 inputs (contact or NAMUR). 1 Transistor output per channel 230VAC supply voltage ATEX information: EC type examination certificate LCIE 02 ATEX 6104X [Ex ia] IIC (-20°C < Ta < 60°C) Group II (surface) - category (1) G/D Installation in safe zone Barrier for equipment installed in zone 0.1.2 gas Or Zone 20,21,22 Dust Customs tariff number: 8504 3180 Country of origin: France/EU

Please contact us to request a price quote for Georgin - RDN 210000, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Georgin-RDN 210000 price
slider
slider

More products of Georgin

  • 0FP06BVLX0300 REF. FPL6VX

    Pressure switch F series protection : IP66 housing : mazak, epoxy painted range : 25 to 400 bar max. pressure : 600 bar sensing element : Bourdon tube material : 316Ti st. st. process connection : 1/2"NPTM switch : 1 tropicalized SPDT adjust. deadband : <32 to 200 bar current rating : 10A/240VAC - 0.5A/110VDC cable gland : polyamid M16 (Ø5-10)

  • 0FP54BQSX0300 REF. FP54QX

    (Pressure switch F series protection: IP66 housing: mazak, epoxy painted range: 2.5 to 25 bar max. pressure : 30 bar sensing element : bellows material: 316L st. st. process connection : 1/2"NPTM switch: 2 separate tropicalized SPDT adj. from : <0,6 to 5 bar current rating : 10A/240VAC - 0.5A/110VDC cable gland : polyamid M16 (Ø5-10) )

  • 0PD06BCB00200 REF. DMPB6M11

    Diff.pressure switch P series protection : IP66 housing : mazak, epoxy painted range : 2 to 40 mbar max. static pressure : 3 bar sensing element : diaphragm BunaN material : BunaN - mazak flange process connection : 1/4"NPTF switch : 1 SPDT, dry contact adjust. deadband : <11 to 30 mbar current rating : 5A/240VAC - 0.5A/110VDC cable gland : polyamid M20 (Ø7.5-13)

  • 17A2E4

    Intrinsically Safe Control

  • BVNS0B00-00-00

    Insulator 230V AC, input/output 4-20mA

  • bzg788+

    Zener Barriere

  • BZG796

    Zener diode

  • FC 54T

    range: 115-210 °C sensing element: 2 m capillary- bulb 9 mm diameter, 120 mm length, copper

  • FC6GXRTPF

    Capillary temperature switch F series protection : IP66 / ATEX flame proof housing : Ex-proof in epoxy painted-st.st. screws range : -20 to +45 ºC max. temperature : 55 ºC sensing element : 4m capillary-bulb Ø14x150mmmaterial : 316Ti st. st. capillary protection : st. st. armor switch : 1 tropicalized SPDT adjust. deadband :(low/high of range)4-20ºC/1-7ºC current rating : 10A/240VAC - 0.5A/110VDC cable gland : as option (elect. connect. 3/4"NPTF) features: Ex d st. st. tag plate

  • FC6PXRTPF

    Capillary temperature switch F series protection : IP66 / ATEX flame proof housing : Ex-proof in epoxy painted-st.st. screws range : 20 to 95 ºC max. temperature : 105 ºC sensing element : 4m capillary-bulb Ø14x150mm material : 316Ti st. st. capillary protection : st. st. armor switch : 1 tropicalized SPDT adjust. deadband :(low/high of range)5-25ºC/1-8ºC current rating : 10A/240VAC - 0.5A/110VDC cable gland : as option (elect. connect. 3/4"NPTF) features: Ex d st. st. tag plate

  • FP4DRX

    Pressure switch F series protection : IP66 / ATEX intrinsic safety housing : mazak, epoxy painted range : 5 to 50 bar max. pressure : 80 bar sensing element : bellows material : 316L st. st.

  • FP4K, Art. N: 0FP04BKS00000

    Pressure switch F series

  • FP54QX

    Pressure switch

  • FP62P

    Pressure switch F series

  • GR5000S00 (0/50 BAR)

    (Gauge pressure transmitter... GR/GA series housting: stainless steel / protection: IP65 range : 0...50 bar maxi pressure : 150 bar sensor: ceramic cell on viton gasket process connection : 1/2" BSPM - st.st. 316 L electrical connector : DIN43650 power supply : 10...30Vdc output signal : 4...20 mA max. global error : 0.5% FS --------ATEX information------------ EC type examination certificate LCIE 01 ATEX 6137X Ex ia IIC T6 or T5 Ga (-30 Ta 55 or 70Celsius) Ex ia IIIC T80Celsius or T95Celsius Da (-30 Ta 55 Celsius or 70 Celsius Groupe II - category 1GD - Zones 0-1-2 or 20-21-2: Ex ia I - group I (MInes) -CAtegory Mi Production Notification LCIE 02 ATEX Q 8023 See leaflet for a safe use)

  • GR7000S00

    Drucktransmitter

  • GRE000S00

    Drucktransmitter

  • GRK000S00

    Drucktransmitter

  • OFP06BPSYO3A0 (FP6PX)

    SWITCH PRESSURE

  • P16AX40A6

    (Pressure switch)

  • PA36K

    pressure Switch

  • PHB34SX

    (Pressure switch P series protection : IP66 housing : mazak, epoxy painted-st.st. screws range : 10 to 90 bar max. pressure : 250 bar sensing element : bellows material : 316L st. st. process connection : 1/2"NPTM switch : 2 simultaneous SPDT, dry contact adjust. deadband current rating : 5A/240VAC - 0.5A/110VDC cable gland : polyamid M20 (Ø7.5-13) features: st. st. tag plate)

  • SEALING DEVICE - F SERIES

    material : PBT Goods of French / E.U. origin European Customs Tariff Pressure Switch : 9032 2000

  • FP6K+S680

    Druckschalter mit Flansch
