Gemü - 2M1474 41C1010210, Type: 0324 / 88322110

Manufacturer Gemü
Part Number 2M1474 41C1010210, Type: 0324 / 88322110
Inner Code 4630505
Description pilot solenoid valve
Custom Code 8481 8079

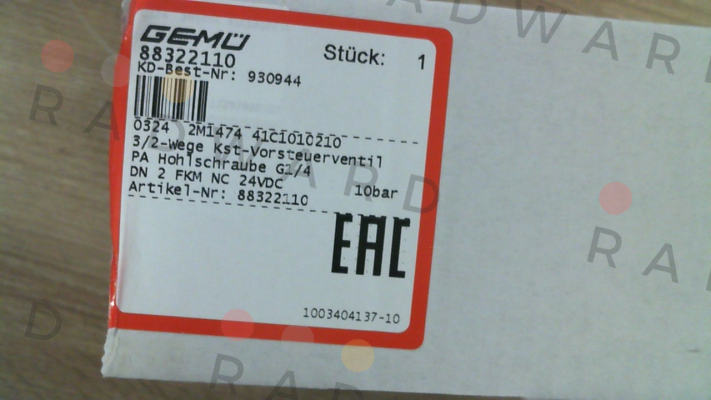

Technical specification 0324 2M1474 41C1010210 Type 0324 pilot solenoid valve, direct operated, direct fit/banjo bolt DN 2 DN 2 housing type M multi-way design connection type 14 threaded sleeve DIN ISO 228, with banjo screw G 1/4 Material valve body/magnet 74 PA, polyamide sealing material 4 FKM Control function 1 normally closed (NC) Voltage/frequency C1 24 V DC Electrical connection 01 device plug design A, Can be assembled with counter socket Option 02 manual override (only control function 1, closed when de-energized) maximum operating pressure 10 10 bar the following documentation is part of the order item 2.1 Factory certificate

Please contact us to request a price quote for Gemü - 2M1474 41C1010210, Type: 0324 / 88322110, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.


WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Gemü-2M1474 41C1010210, Type: 0324 / 88322110 price

More products of Gemü

  • 610 12D 1 55211/N

    Diaphragm valve, pneumatically operated, plastic piston drive, optical position indicator DN 12 Two-way body Threaded sockets DIN ISO 228 reinforced PP, PTFE / EPDM Normally closed (NC) Actuator size 1 / N DN12 Housing form - D Connection Ventilkörper- 1 Body material-5 Diaphragm material -52 Control function-1 Drive Version 1 / N Threaded socket G 3/8

  • 611 12D 112140

    Diaphragm valve, manually operated, plastic hand wheel, Seal adjuster, optical position indicator

  • 615 12D 1125211/N

    Diaphragm valve, pneumatically operated, plastic piston actuator, optical position indicator

  • 620 25D39175210/N

    (620 type diaphragm valve, pneumatically operated, diaphragm actuator, cast iron intermediate piece 25 DN DN 25 D housing form two-passage body 39 of connection valve body flange ANSI Class 125/150 RF length EN 558, row 1, ISO 5752, series basic 1 17 Body material EN- GJS-400-18-LT (GGG 40.3) PFA liner 52 membrane material PTFE / EPDM 1 control function in normally closed (NC) 0 / N drive execution engine size 0 / N)

  • 620100D38831434AD

    Diaphragm Valve, pneumatically operated, diaphragm actuator, cast iron intermediate piece 100 DN 100 DN

  • 620100M14

    MEMBRANE EPDM MG 100

  • 620150D39175214A3

    Diaphragm Valve, pneumatically operated, diaphragm actuator, cast iron intermediate piece

  • 643 25B37415E0 2 1503

    2/2-way metal bottom drain valve manually controlled

  • 643 40B37415E0 3 1503

    2/2-way metal bottom drain valve manually controlled

  • 654 15T17411701TH 40171502

    654 type diaphragm valve, manually operated hand wheel stainless steel electropolished optical position indicator DN 15 DN 15 T Case T-shape body 17 of connection valve body port DIN 11850, Row 2 41 Body material 1.4435 (316L), solid 17 membrane material EPDM 0 control function Manually operated 1TH drive version with closing and Stroke 40 DN-2 DN 40 17 Connection-2 valve body port DIN 11850, Row 2 1502 surface roughness Ra <0.8 = mechanically polished internal, blasted out, Surface data relate to wetted surfaces Fusion spigots 19,00 x 1,50 Fusion spigots 41,00 x 1,50 Customs tariff number: 84818087 Weight: 1.5320 KG Country of origin: DE

  • 654 25T17411702TH 50171502

    654 type diaphragm valve, manually operated hand wheel stainless steel electropolished optical position indicator 25 DN DN 25 T Case T-shape body 17 of connection valve body port DIN 11850, Row 2 41 Body material 1.4435 (316L), solid 17 membrane material EPDM 0 control function Manually operated 2TH drive version with closing and Stroke 50 DN-2 DN 50 17 Connection-2 valve body port DIN 11850, Row 2 1502 surface Ra <= 0.8 microns inside mechanically polished radiated outside fusion spigots 29,00 x 1,50 Fusion spigots 53,00 x 1,50 Customs tariff number: 84818087

  • 667 25D 0 1142

    (667 type diaphragm valve, pneumatically operated, plastic sheet diaphragm actuator 25 DN DN 25 D housing form two-way body 0 Connection Valve body spigots DIN 1 Body material PVC-U, gray 14 membrane material EPDM 2 control function in normally open (NO))

  • 673-20-D-60-34-13-0-2TS-1502

    Diaphragm valve, manually operated handwheel plastic, metal Zwischenstüc Seal adjuster, optical position indicator

  • 675 50D 8 8140

    Diaphragm valve, manually operated handwheel metal, metal spacer optical position indicator

  • 675 50D 8 8520

    Diaphragm valve, manually operated handwheel metal, metal spacer optical position indicator

  • 675150D 8 8140

    Diaphragm valve, manually operated handwheel metal, metal spacer optical position indicator

  • 675150D 8 8520

    675 type diaphragm valve, manually operated handwheel metal, metal spacer Optical position indicator 150: Nominal diameter - DN 150

  • 687 25D 8831411/N

    25D is 687 PB10B is PST5,0-6,0B DIAPHRAGM VALVE

  • 687 25D18341311/N 1500

    687 type diaphragm valve, pneumatically operated, plastic actuator, stainless steel connecting piece 25 DN DN 25 D housing form two-way body 18 of connection valve body port DIN 11850, Row 3 34 Body material 1.4435 (ASTM A 351 CF3M - 316L), investment casting 13 membrane material EPDM 1 control function in normally closed (NC) 1 / N driving execution engine size 1 / N 1500 Surface roughness Ra </ blasted = 6.3 micrometers inside the outside surface are given by themselves wetted surfaces

  • 687-40-D-39-17-5E-3-2/N

    687 type diaphragm valve, pneumatically operated, plastic actuator, stainless steel connecting piece 40 DN DN 40 D housing form two-way body 39 Connection Valve body flange ANSI Class 125/150 RF length EN 558, series 1, ISO 5752, basic series 1 17 Body material EN-GJS-400-18-LT (GGG 40.3) PFA liner 5E membrane material PTFE / EPDM 3 driven control function both sides (DA) 2 / N drive execution engine size 2 / N

  • 690 40D 7711412/N

    690 type 40 DN D body shape Connection Valve body 7 71 Body material Outliner PP reinforced 14 Diaphragm material 1 control function 2 / N drive execution Diaphragm valve, pneumatically operated, plastic diaphragm actuator DN 40 Two-way body Ends with DIN insert (bushing) PP-H PP-liner / outliner, liner gray / EPDM Normally closed (NC) Actuator size 2 / N

  • 690 50D7R 15E13/N

    Diaphragm valve, pneumatically operated, plastic diaphragm actuator

  • 695 25D 1 81411/N

    Diaphragm valve, pneumatically operated, plastic diaphragm actuator

  • 695 50D17341323/N

    Diaphragm valve, pneumatically operated, plastic diaphragm actuator

  • 695 50D39175E13/N

    Diaphragm valve, pneumatically operated, plastic diaphragm actuator
