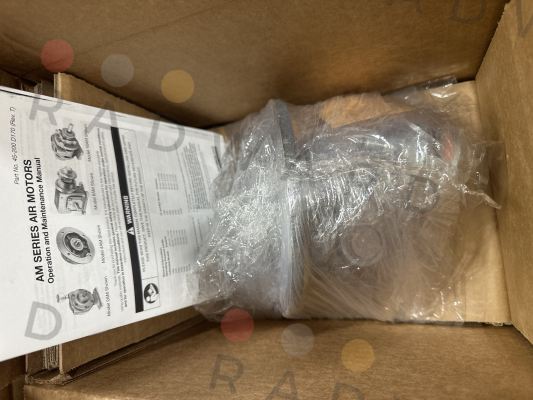

Gast - 4AM-ARV-119
| Manufacturer | Gast |
|---|---|
| Part Number | 4AM-ARV-119 |
| Inner Code | 1878263 |
| Description | Motor |
| Custom Code | 8412310000 |
| Technical specification | Key Type: KEY,SQ (METRIC) Max Air Consumption: 78 cfm ( 132.52 m3h ) Max Power: 1.7 hp ( 1.27 kW ) Max Pressure: 7 bar ( 101.53 psi ) Max Sound Level: 87 dB(A) Max Speed: 3000 rpm Max Torque: 56 in-lb ( 6.33 N m ) Mount: Flange (IEC) Output Shaft Type: Keyed Port Size and Type: 3/8" BSP Regulatory Approval: CE, ATEX Rotation: Reversible Shaft Size: 0.55 in ( 13.97 mm ) Stainless Steel: NO Starting Torque @ 80psi: 28 in-lb ( 3.16 N m ) Torque Max Speed: 36 in-lb ( 4.07 N m ) Vanes: 4 |
| Weight | 5 |
Please contact us to request a price quote for Gast - 4AM-ARV-119, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
