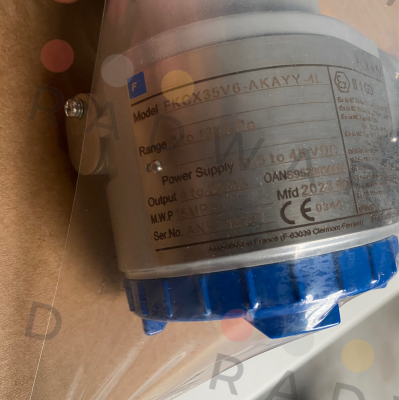

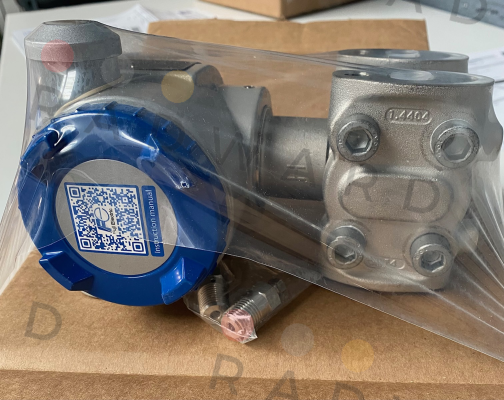

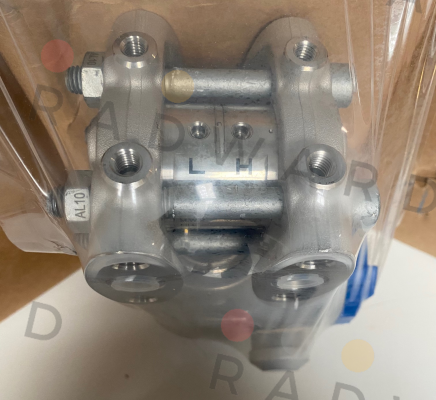

Fuji - FKCX35V5-AKAYY-AA
| Manufacturer | Fuji |
|---|---|
| Part Number | FKCX35V5-AKAYY-AA |
| Inner Code | 4703143 |
| Description | DIFFERENTIAL PRESSURE SENSOR |
| Technical specification | FCX-AII V5 Model: FKC Type: Smart: 4-20 mADC+ HARTTM/Fuji digital signal Connection process: 1/4-18 NPT Oval flange screws: 7/16-20 UNF Electrical connection: Pg 13.5 Static pressure: -1 to 160 bar Measurement ranges: 0.13/13 mCE Flanges: 316L stainless steel Measuring membrane: 316L stainless steel Other parts in contact: 316L stainless steel Indicator: none Surge protector: without Initial setting: 4-20mA DC+ Hart/Fuji digital signal Approvals for operation in hazardous areas: ATEX - safety intrinsic (SI) Vent/side drain: without Mounting bracket: without Reference plate: without Case: aluminum Treatment: none (standard) Cell filling liquid: silicone oil Process flange joint: viton Fastener materials: Cr-Mo - M10 carbon steel for static pressure < 160 bar |
Please contact us to request a price quote for Fuji - FKCX35V5-AKAYY-AA, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
