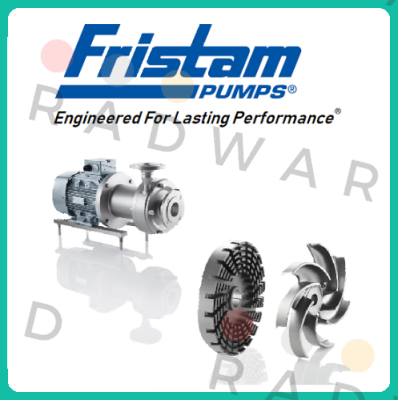

Fristam - FP 1252/230 VB
| Manufacturer | Fristam |
|---|---|
| Part Number | FP 1252/230 VB |
| Inner Code | 4064432 |
| Description | centrifugal pump |
| Custom Code | 84137051 |
| Technical specification | Part number 0475000001 pump with motor base Pump material: 1.4404 (316L) Shaft seal: 9.775S/2 (2V21E3/2N5E3) 1. SIC/SIC/EPDM 2. Charcoal/cast chrome/EPDM Elastomers: EPDM alcohol resistant with FDA certificate Connection type: DIN 11864-NF-A for pipes in accordance with DIN 11866 A Suction side: DN 150 Pressure side: DN 125 Impeller diameter: 230mm Motor: 75.0 kW, n = 2900 rpm 50 Hz, ISO class ISO: F Voltage 400/690V IP 55 Funding dates: Product = fruit juice 200-300 m³/h versus 55 m fls Temperature = 55°C Viscosity = 6 mPa*s --- Density = 1.1 kg/l More details: sugar max. 24 Brix, particles approx. 0.5 mm pieces of fruit, Pulp matter max. 40% Very small additives such as bentonite and charcoal are possible, Wear and tear is then to be expected Cleaning media: Vapour water max. 55°C., duration approx. 2 h, Sodium hydroxide solution 3% max., pH up to 12 Free chlorine up to 500 ppm at pH 10-11 Certificates/tests: Documentation exclusively in accordance with Fristam standards, if not otherwise confirmed. - QH curve 1 operating point - FDA certificate/EG1935/2004 - standard measurement sheet In general: - Alexit No. 91 pure silver finish engine: - IEC280S motor size - Terminal box location: right - with cold conductor temperature sensor - according to efficiency class IE3 Pump head: - Connections: DIN 11864-NF-A groove flange for pipes in accordance with DIN 11866 A Shaft seal: - GLRD: double-acting Rinsing water pressure max. 0.2 bar incl. rinse water connection with G1/8" pipe other agreements: - Shaft seal: with PTFE sleeves and circulation connection (above) G1/4/G1/4, 155 mm long, Tube 13,7 x 2,2 mm, Item No. 0915610441. The circulation line is supplied on site by the customer to the Suction line connected. - Terminal box on the right, when looking at the suction port - pump like SN 0475710005 |
Please contact us to request a price quote for Fristam - FP 1252/230 VB, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
