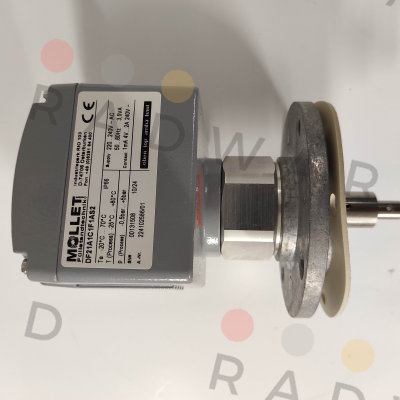

Filsa - DF21A1C1F1AS2
| Manufacturer | Filsa |
|---|---|
| Part Number | DF21A1C1F1AS2 |
| Inner Code | 5050249 |
| Custom Code | 90318020 |
| Technical specification | MolosRoto rotary vane level indicator DF21 limit switch for bulk materials Full, empty and demand detectors for any installation position > >> wide range of applications << < A1 aluminum compact housing, coated RAL 7001, IP66 Ambient temperature at the control head Ta -20°C... 70°C C1 operating voltage 220... 240 V AC (50... 60 Hz) signal contact 1 mA 4 V... 2 A 250 V~, potential-free change-over gold-plated contacts (multi-voltage and multi-current switches) U0 Vane speed = 1 rpm (standard) H0 Function LEDs, yellow=on/blue=full/green=empty E0 Bulk material temperature -25 °C... 80 °C P0 suitable for pressure in the container -0.5 bar... 5 bar F1A process connection F70 aluminum flange Dimensions Ø70, Ø110, LK90, 4xØ9 R0 standard NBR shaft seal, black S2 socket wing S, angled, 130x30 mm Length >LF< = 118 mm, measured on the shaft = 52 mm |
Please contact us to request a price quote for Filsa - DF21A1C1F1AS2, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
