Filsa - DF25A1B1C1F2ET1VLR300W00
| Manufacturer | Filsa |
|---|---|
| Part Number | DF25A1B1C1F2ET1VLR300W00 |
| Inner Code | 4615537 |

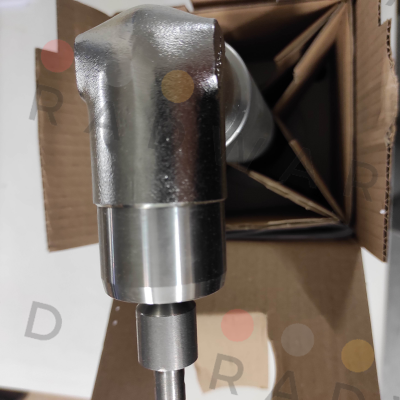

| Description | MolosRoto rotary wing level indicator |
| Custom Code | 9031 80 20 |
| Technical specification | DF25 limit switch for bulk materials Full, empty and demand detectors for horizontal installation > >> with angled boom and support tube << < A1 aluminum compact housing, RAL 7001, protection class IP66 Ambient temperature at the control head Ta -20°C... 70°C B1 StaubEx II 1/2D Ex ta/tb IIIC T80 °C Da/Db for use in potentially explosive atmospheres C1 operating voltage 220... 240 V AC (50... 60 Hz) signal contact 1 mA 4 V... 2 A 240 V~, potential-free changeover contact gold-plated contacts (multi-voltage and multi-current switch) H0 function LEDs, yellow=on/blue=full/green=empty E0 bulk material temperature -25 °C... 80 °C P0 suitable for pressure in the container -0.5 bar... 5 bar F2E process connection flange F100 from 1.4301 Dimensions 150x150, Lk170, 4xØ18 R0 standard shaft seal made of NBR, black T1V measuring blade T50, reinforced, 98x50 mm length >LF< = 52 mm LR300 support tube length >LR< = 300 mm W00 flange welded to the support tube W = 0° |
Please contact us to request a price quote for Filsa - DF25A1B1C1F2ET1VLR300W00, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
