Erhardt Leimer - 00366945
| Manufacturer | Erhardt Leimer |
|---|---|
| Part Number | 00366945 |
| Inner Code | 3339958 |
| Description | Combined Controller |
| Custom Code | 84798997 |

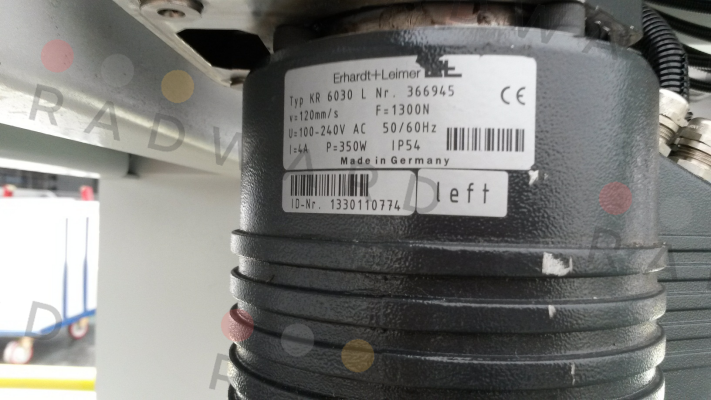

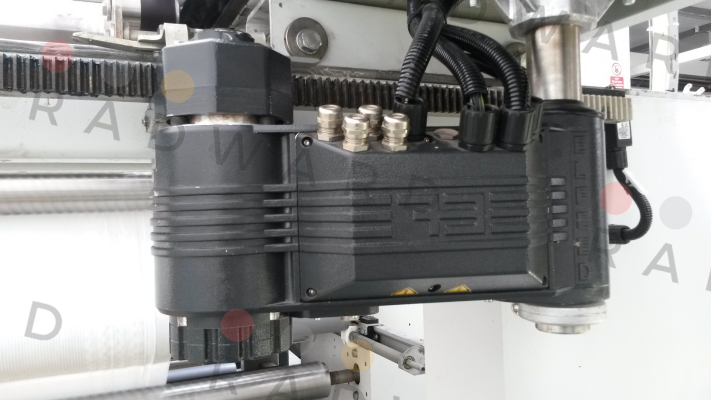

| Technical specification | 00366945 KR_6000-10524903 Combined controller/actuator unit KR 6030 left. Consists of brushless AC motor and integrated digital controller, drive pinion including rack lock. Flange column with clamping ring and sleeve for mounting the controller/actuator unit KR 60. Protection class IP 54, actuating force 1300 N, actuating speed max. 120 mm/s Nominal voltage 100 to 240 V AC, 50/60 Hz According to dimension sheet: 158308 RAL 7021 (black gray) |
| Weight | 23 |
Please contact us to request a price quote for Erhardt Leimer - 00366945, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
