Enidine - YI-2B12-429
| Manufacturer | Enidine |
|---|---|
| Part Number | YI-2B12-429 |
| Inner Code | 4539184 |

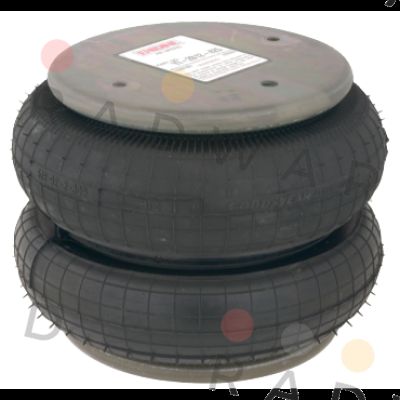

| Description | Imperial Double Convoluted Bellows Type Air Spring |
| Technical specification | FORCE @ 2 IN STROKE 8400 lbf FORCE @ 1 IN STROKE 8400 lbf FORCE @ 8 IN STROKE N/A BUMPERS w/o Bumpers TEMPERATURE RANGE [MAX] 150 °F AIR INLET 3/4 in RECOMMENDED ISOLATOR DESIGN HEIGHT [MIN] 7 1/2 in STYLE NO. YI-2B BELLOWS TYPE Double Convolution PRESSURE [MAX] 100 psi FORCE @ 12 IN STROKE N/A BLIND TAP SPACING 6.2 in RECOMMENDED ISOLATOR DESIGN HEIGHT [MAX] 9 1/2 in STROKE LENGTH [MAX] 6.100 in TEMPERATURE RANGE [MIN] -40 °F END PLATE DIAMETER 9 in FILL PORT OFFSET 2 7/8 in FORCE @ 3 IN STROKE 5200 lbf FORCE @ 5 IN STROKE N/A COMPRESSED HEIGHT 3.4 in FORCE @ 6 IN STROKE 5200 lbf FORCE @ 9 IN STROKE N/A CONVOLUTIONS Double FORCE @ MAXIMUM STROKE (80 PSI) 5200 lbf AIR INLET TYPE NPT FORCE @ 4 IN STROKE 7200 lbf END CLOSURE Style 3 End Retainer FORCE @ STROKE (80 PSI) 8420 lbf @ 2 in, 7200 lbf @ 4 in, 5200 lbf @ 6 in WEIGHT 12.4 LB |
Please contact us to request a price quote for Enidine - YI-2B12-429, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
