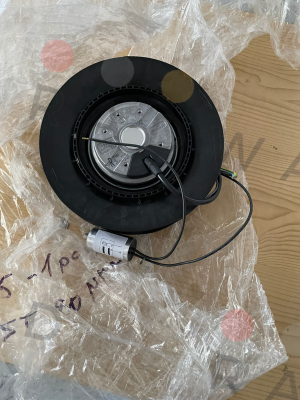

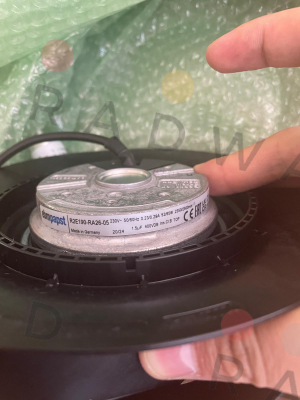

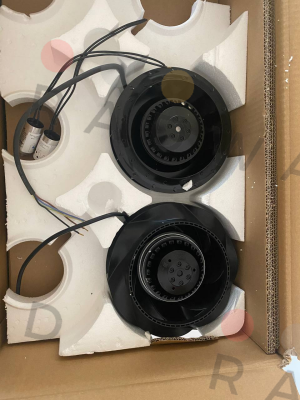

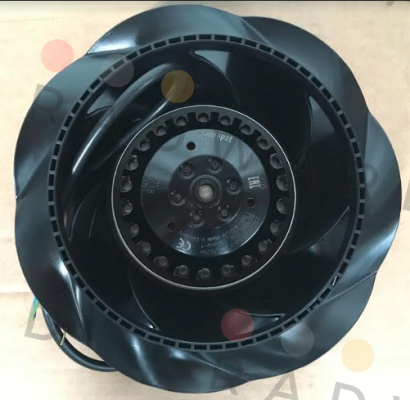

EBM Papst - R2E190RA2605
| Manufacturer | EBM Papst |
|---|---|
| Part Number | R2E190RA2605 |
| Inner Code | 508602 |
| Description | Fan |
| Custom Code | 84145935 |
| Technical specification | Centrifugal Fan, Centrifugal, 230 V, AC, 190 mm, 68.5 mm Phase 1~ 1~ Nominal voltage [V] 230 230 Frequency [Hz] 50 60 Type of data definition rfa rfa Valid for approval / standard CE CE Speed [min-1] 2480 2720 Power input [W] 48 60 Current draw [A] 0.22 0.27 Leackage current < 0.75 mA Size 190 mm Operation mode S1 Direction of rotation Clockwise, seen on rotor Mounting position Shaft horizontal or rotor on bottom; rotor on top on request Humidity class F1-2 Insulation class "B" Cable exit Variable Condensate discharge holes Rotor-side Bearing motor Ball bearing Mass 1.2 kg Material of impeller Plastic PA6, fibreglass-reinforced Motor protection Thermal overload protector (TOP) wired internally Product conforming to standard CE; EN 60335-1 Surface of rotor Coated in black Number of blades 7 Type of protection IP 44; Depending on installation and position as per EN 60034-5 Protection class I Max. permissible ambient motor temp. (transp./ storage) + 80 °C Min. permissible ambient motor temp. (transp./storage) - 40 °C Approval CCC; GOST Motor capacitor [µF] 1.5 1.5 Capacitor voltage [VDB] 400 400 Capacitor standard P0 (CE) P0 (CE) Min. back pressure [Pa] 0 0 Max. ambient temperature [°C] 65 75 |
| Weight | 1.3 |
Please contact us to request a price quote for EBM Papst - R2E190RA2605, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
