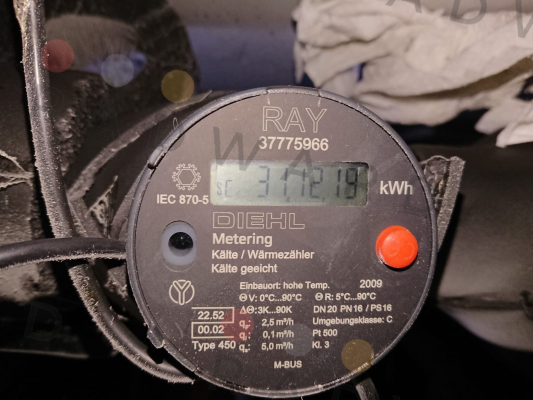

Diehl - 3101846, type RAY MB M-MKKWZR-MB 2.5 3.3 20 130 90 16
| Manufacturer | Diehl |
|---|---|
| Part Number | 3101846, type RAY MB M-MKKWZR-MB 2.5 3.3 20 130 90 16 |
| Inner Code | 3432635 |
| Description | allocator |
| Technical specification | Product name: RAY MB M-MKKWZR-MB BR Series: 450 QN/QP/Q3:2.50 m³/h DN: 20.00 MM PN: 16 BAR Width: 130 mm Connector: G1B Temperature: 90°C Variant: KWH Version: DMDE_DE Approval: EN 3.3 Individual encryption: N Customer version: dmde_DE Approval: PTB_K7.2 Test class Volume: EN class 3 25:1 Energy unit: kWh, 0 decimal places Interface 1: M-Bus Interface 2: without Temperature sensor: Pt500 Temperature sensor installation RL: 0.4 m grey 105 °C Temperature sensor installation VL: 1.5 m grey 105 °C Flow sensor installation: return Power supply: 3 V battery Usage: cold heat meter Customer start serial number: 0 M-Bus primary address: 0 |
| Weight | 1 |
Please contact us to request a price quote for Diehl - 3101846, type RAY MB M-MKKWZR-MB 2.5 3.3 20 130 90 16, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
