Demag - KBS 80 B12 B5 400V50 DB
| Manufacturer | Demag |
|---|---|
| Part Number | KBS 80 B12 B5 400V50 DB |
| Inner Code | 4986723 |

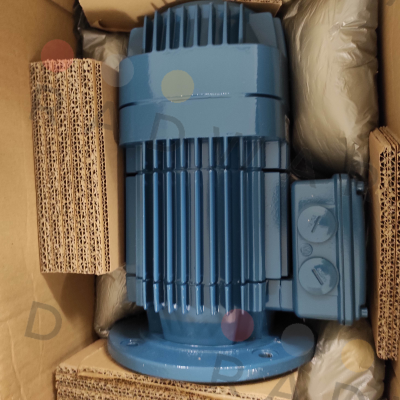

| Description | Motor |
| Technical specification | The motor is designed according to standard EN 60034/1 for 40°C ambient temperature and maximum installation altitude 1,000 m above sea level, in thermal class F. Technical data: Power 1,400 NM Duty cycle 100% Motor protection class IP 65 Design key KBS 80 B 12 -B5-1 Design B5 Terminal box position right, 1 Motor installation position horizontal Total net weight approx. 15 kg Electrical data: Voltage D/Y 230/400 V Frequency 50 Hz Current D/Y 0.78/0.45 A Equipment: 3 temperature monitors for shutdown at 155 ° C Condensate drain hole, screwed Conical brake disc light Braking surfaces galvanized Increased protection class Closed brake chamber End shield oil-tight Selected Ambient temperature: 50° C Flange A 200 Heat class F with factory certificate 2.1 according to EN 10204 1-fold Design exactly as order number: 631323 Color: RAL 5009, azure blue |
Please contact us to request a price quote for Demag - KBS 80 B12 B5 400V50 DB, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
