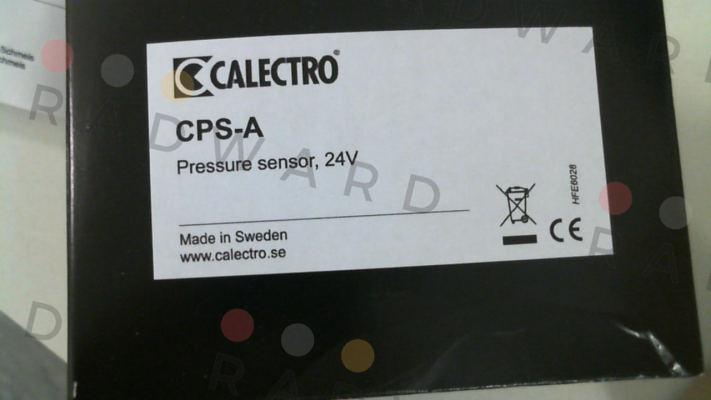

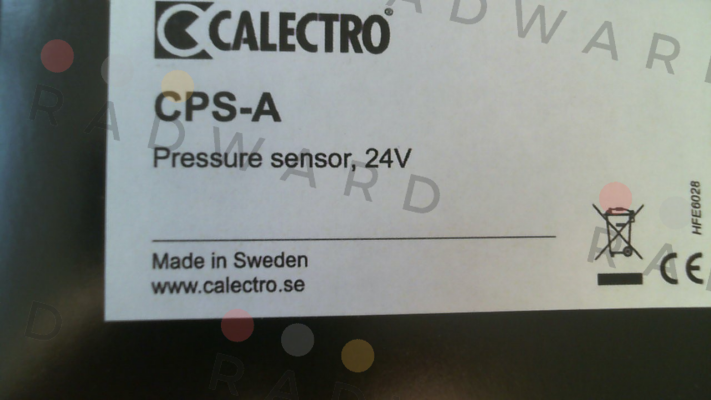

Calectro - CPS-A
| Manufacturer | Calectro |
|---|---|
| Part Number | CPS-A |
| Inner Code | 3306403 |
| Description | Differential pressure transmitter -50 - +3500 Pa |
| Custom Code | 90321020 |

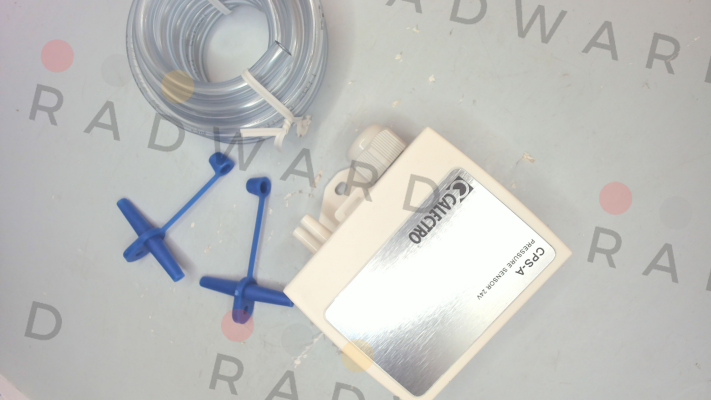

| Technical specification | CPS-A pressure sensor has a built-in differential pressure element, which helps to achieve high accuracy and Linearity is temperature-compensated. With a DIP switch, the desired pressure measurement range is discontinued. The output signal (0-10V or 4-20 mA) and the desired signal attenuation are also provided with set to the DIP switch. Housing terminal and cable connection (with pre-assembled M16 screws) can be removed, which simplifies installation. The housing cover has on the top edge a hinge and at the bottom a snap lock with locking hook, which closes the lid in When folded up, keeps it open. Supply voltage: 24V AC/DC ± 10% Power consumption: approx. 31 mA output signal: 0-10V/4-20 mA Pressure ranges: -50-50/0-100/-300/-500/-700/-1000/-200/1-3500 Pa Accuracy: Usually ± 1% of measured pressure Green LED: Lights continuously: normal operation Flashes: zero pressure calibration Ambient temperature: -20 to +50°C Cable inputs: 1xM16, 5-10 mm cable 2 m hose and 2 nipples Dimensions (WxHxD): 78x90x40 mm Protection class: IP54 |
| Weight | 0.16 |
Please contact us to request a price quote for Calectro - CPS-A, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
