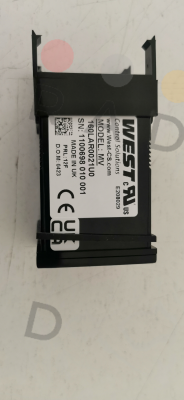

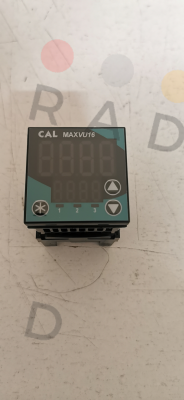

Cal Controls - MV-160L-ARO-021U0
| Manufacturer | Cal Controls |
|---|---|
| Part Number | MV-160L-ARO-021U0 |
| Inner Code | 4684381 |
| Description | Controller |
| Technical specification | Alarms High/Low, Deviation, Band Approvals CE, CSA, EMC, UL Calibration ±0.25% of full range ±1 LSD Control mode PID or on/off Digit size 18 mm upper / 10.2 mm lower Digital signal in No Frequency 50-60 Hz Galvanic isolation Between supply and input/output Indication Red LED Input J, K, C, R, S, T, B, L, N thermocouple, PT100, Linear 4-20 mA, 0-10 V IP class front IP65 Logic output >10 V DC @ 20 mA Material protection Polycarbonate Moisture resistance 20% - 95% Rh, non condensing Mounting Panel mount Mounting Panel Mount Number of digits 4 Output Logic (SSR), 1x relay Panel size 48x48 mm Power consumption 7.5 VA / 5 W Relay function SPST Relay output 2 A, 250 V AC, resistive load Sampling 4 times / second Storage temperature max 80 °C Storage temperature min -20 °C Supply voltage 24 V AC/DC Temperature resistance housing to 55 °C |
Please contact us to request a price quote for Cal Controls - MV-160L-ARO-021U0, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
