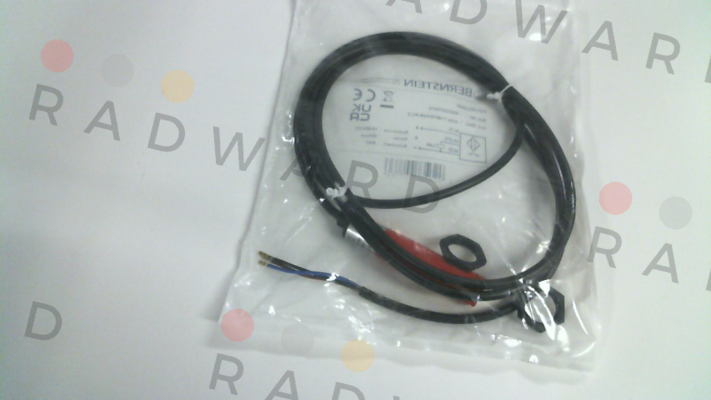

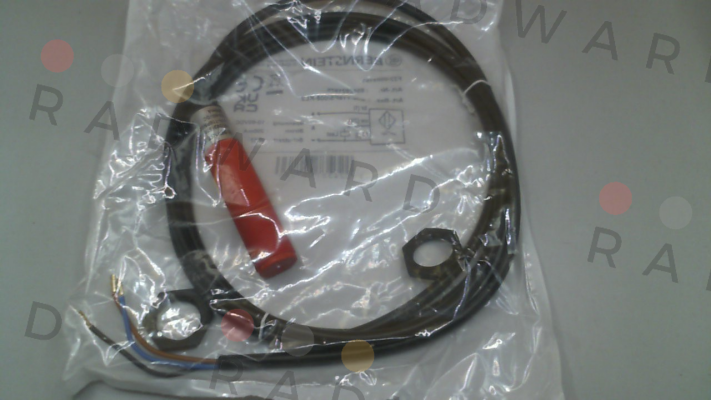

Bernstein - 6502921975 / KIN-T18PS/008-KL2
| Manufacturer | Bernstein |
|---|---|
| Part Number | 6502921975 / KIN-T18PS/008-KL2 |
| Inner Code | 663150 |
| Description | Inductive Proximity Switch |
| Custom Code | 85365019 |
| Technical specification | Electrical data Rated operating distance Sn 8 mm Standard target 24 mm x 24 mm, t = 1 mm; Material: FE360 Real sensing distance Sr 7,2 ... 8,8 mm Assured operating distance Sa 0 ... 6,5 mm Switching element function N.O., DC Repeat accuracy R ≤ 5 % Differential travel (hysteresis) H ≈ 10 % Operational voltage range UB 10 - 60 V DC Rated insulation voltage Ui 75 V DC Rated impulse withstand voltage Uimp 500 V Voltage drop Ud ≤ 2,5 V Utilization category DC-13 at Ie= 50 mA and Ue= 33 V DC Rated operational current le 200 mA Off–state current lr < 0,1 mA No-load supply current l0 < 8 mA Frequency of operating cycles f 200 Hz Rated supply frequency 50/60 Hz Mounting non flush Protection class II Time delay before availability tv ≤ 50 ms |
| Weight | 1 |
Please contact us to request a price quote for Bernstein - 6502921975 / KIN-T18PS/008-KL2, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
