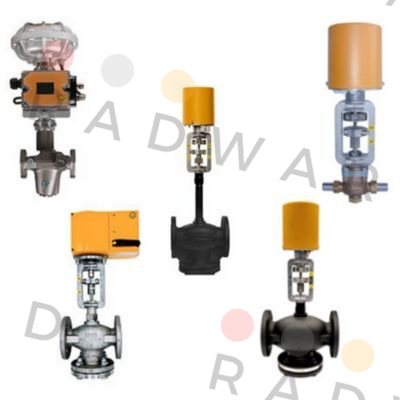

Baelz - D-VENTIL (342-2440 + 373-P21-019)
| Manufacturer | Baelz |
|---|---|
| Part Number | D-VENTIL (342-2440 + 373-P21-019) |
| Inner Code | 1862575 |
| Description | valve, completely assembled |
| Technical specification | Best No. 342-2440 three-way control valve with cooling tube and bellows 5.3103, max. 350°C, stroke 22 mm; without drive 342-2-BK-SS-DN 65-PN 16Kvs 63 KS 22549 1 piece Case: GJS-400-18-LT - 5.3103 max. 350°C/11.2 bar - 50°C/16 bar spindle Ø 10 mm DN 65, PN 16, Kvs 63 Way of passage: (A-AB) Kvso: 0.004% Corner path: (B-AB) Kvso: 2% max. permiss. max. differential pressure, mixing valves (2 inputs/1 output) 5 bar max. permiss. max. differential pressure diverter valves (1 input/2 outputs) 0.6 bar Best No. 373-P21-019 Linear diaphragm lift actuator* 6 springs at the bottom 373-P21-6-FU-S21-22mm Ambient conditions: 0... 80°C, 0...90% r.h. required. Control air pressure: 3 bar, max. 6 bar Stroke: max. 22 mm including drive stand and clutch (S21), incl. push-in fitting for hose Ø 8 mm for valves with spindle diameter 10 mm |
| Weight | 1 |
Please contact us to request a price quote for Baelz - D-VENTIL (342-2440 + 373-P21-019), or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
