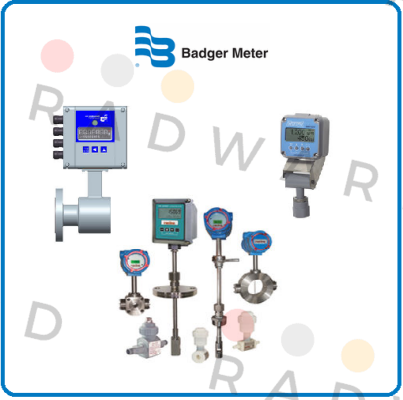

Badger Meter - TYPE 2
| Manufacturer | Badger Meter |
|---|---|
| Part Number | TYPE 2 |
| Inner Code | 3748127 |
| Description | Meßaufnehmer : Typ II Magnetisch-Induktiver-Durchflußmesser |
| Technical specification | MODMAG M100 DN32 EN-1092-1 / 13 B2 TYPE STEEL FLANGE (4 PIECES WITH M16 SCREW HOLES) PN16 IP67 -40 TO 100 DEGREE WATER TEMPERATURES. MEASUREMENT TUBE: STAINLESS STEEL 1.4571 MIN CONDUCTIVITY: 5US / CM SUPPLY VOLTAGE 24VDC MEASUREMENT UP TO MAXIMUM 12M / S FLOW SPEED NOMINAL FLOW TO BE MEASURED 120LT / DK (MIN 0LT, MAXIMUM 200LT / DK) THE ACCURACY CLASS WILL BE MAXIMUM 0.5%. WILL BE INSTALLABLE IN EVERY POSITION. PROGRAMMABLE 4-20MA ANOLOG OUTPUT WILL BE OUT. 2 DIGITAL CONTACTS THAT WILL EXIT ACCORDING TO THE PROGRAMMABLE SET VALUE wILL (24VDC OUTPUT ACCORDING TO SET 2 SET LOW AND VERY LOW SET VALUE OR DRY CONTACT EXCHANGE. CONTACTS NORMALLY WILL BE ON, IF THE IMMEDIATE FLOW VALUE UNDER THE SET SET OFF POSITION) INSTANT AND TOTAL FLOW WILL SHOW ON LCD There will be RS232, 422, 485 SERIAL INTERFACE CONNECTIONS. EMPTY PIPE WILL BE DETECTED. SCREEN AND CONVERTER PART 2-5 METERS AWAY FROM MEASUREMENT TUBE OF FLOWMETER AND WALL MOUNTABLE. WALL MOUNTING APPARATUS AND NECESSARY CABLE TOGETHER WILL BE SENT. EVERY NECESSARY REQUIRED FOR THE FLOWMETER TO MAKE THE ABOVE PROCEDURES KIND OF SIDE EQUIPMENT WILL BE GIVEN. SAMPLE MODEL: BADGER METER MODMAG M1000 (TYPE 2) CONVERTER PART OF THE PRODUCT REMOTE CONNECTION IS AS VISUAL BY US WILL BE DONE. |
| Weight | 1 |
Please contact us to request a price quote for Badger Meter - TYPE 2, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
