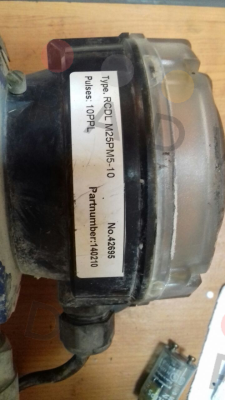

Badger Meter - 140210

More products of Badger Meter

• KT 201403193

  MID M 1000 flange ISO DN 100 PN 16 Hard rubber Hastelloy C 230VAC

  Make request
• KT 20140417

  MID M 1000 with ISO flange DN 150 Hard rubber Hastelloy C 230VAC

  Make request
• LIQUID FLOW METER RCDL M70, WITH PULSE GENERATOR PFT-1E.

  Body: Bronze Measuring chamber: Vectra O-rings: Viton Measuring range: 18 - 265 l / min Accuracy: + / - 1.5% of the value p-max: 16 bar t-max: 120 ° C Connection: R 1 1/4 "male Length: 273 mm Mounting position: horizontal, vertical Pulse Output: Transistor NPN open Scale Factor: 0.00001 to 0.9999 Supply: 12-24 VDC

  Make request
• LM OG-CND

  for petrol, oil, digital and electronic counters, rotary platforms ½, flow. 0-28 I / min

  Make request
• LM OG-PND P114

  Product preset Max 120°F/50°C Min 20°F/-5°C 868 mhz

  Make request
• B102101

  Einbauzähler mit Impulsgeber für Schmieröl

  Make request
• M1500 AA 230 V AC MAGNETOFLOW MAG AMPLIFIER

  Make request
• M2000 AM DN50

  ELECTROMAGNETIC FLOW METER

  Make request
• MAGNETOFLOW TYP II DN 65 / PN 16

  Magnetic flowmeter with transmitter M1500 for full pipes.

  Make request
• MID 2-100/16-F/ST-WG-ML/HC-ST M15A SK1

  Type II DN 100 / PN 16 with amplifier M1500 for full pipes

  Make request
• MID 2-25/16-F/ST-HG-MEL/HC-ST M15D obsolete, replacement MID 2-25/16-F/St-HG-MEL/HC-St M10DM

  (P/N 9005257) M1500 (24 VDC)

  Make request
• MID ERDUNGSRINGE SST DN 32 / PN 15 DIN

  Make request
• MID M 1000 MIT FLANSCH DN 32 HARTGUMMI HASTELLOY C 24VDC

  Magnetic flowmeter Magneto Flow Type II DN 32 / PN 16 with transmitter for M2000 full pipes.

  Make request
• MN7

  schetchik jidkosti

  Make request
• MN80AAP-1

  MN SERİES,70-733 LPM 1200 KPA 3”/80MM BSP

  Make request
• MODEl M1500 6"

  Make request
• MODEL RCDL M25

  BADGER METER RCDL DISC METERS POSITIVE DISPLACEMENT – NUTATING DISC

  Make request
• PFT2

  Make request
• RCDL LCR

  Register with pulse output, Electronic counter LCR type with an LCD display and, pulse output above for OG-Baureihe.Anzeige 1: resettable totalizer or flow indication programmable, Format xxxx.x. Display 2: Non-resettable totalizer, 14 digits. Memory display: EEPROM, data retention in battery replacement Units: liters, gallons, pints, quarts Temperature: 0-70 ° C Pulse acquisition: Reed, max.50Hz Input pulse: from 1.00 to 17000.00 (numerator) Correction factor: 0.5000 to 2.0000 Power supply: 3 VDC Lithium CR 1/2 AA Protection: IP 64 For counter Size: M25-M35-M40-M70-M120-M170 Pulse output: NPN, MOSFET 40V / 2A Pulse factor: 0.01-99.99 Pulse length: 10ms (2ms, 20ms, 40ms) Ext.Stromversorg. : 8-24VDC Pulse output PPL: 0,01-0,1-1-10-100 Dosing control: 0.01 to 999.99 Preliminary circuit: from 0.00 to 99.99 Switching output: NPN, MOSFET 40V / 2A

  Make request
• RCDL LCR REGISTER MIT IMPULSAUSGANG U. STROMAUSGANG 4-20MA

  Electronic counter LCR type with an LCD display, Display 1: resettable totalizer or Flow display programmable, Format xxx.xx. Display 2: Non-resettable totalizer 14 digits. Memory display: EEPROM, data retention in battery replacement Units: liters, gallons, pints, quarts Temperature: 0-70 ° C Pulse acquisition: Reed, max.50Hz Input pulse: from 1.00 to 17000.00 (numerator) Correction factor: 0.5000 to 2.0000 Power supply: 3 VDC Lithium CR 1/2 AA

  Make request
• RCDL LCR REGISTER OHNE IMPULSAUSGANG

  Electronic counter LCR type with an LCD display, for the OG series Display 1: resettable totalizer or Flow display programmable, format xxxx.x Display 2: Non-resettable totalizer 14 digits Memory display: EEPROM, data retention in battery replacement Units: liters, gallons, pints, quarts Temperature: 0-70 ° C Pulse acquisition: Reed, max.50Hz Input pulse: from 1.00 to 17000.00 (numerator) Correction factor: 0.5000 to 2.0000 Power supply: 3 VDC Lithium CR 1/2 AA Protection: IP 64

  Make request
• RCDL M25

  3/4 "or 1" PPO Viton without pulse, fluid meter RCDL M25 without construction. Material and technical data: Housing: Nylon Measuring chamber: Noryl (PPO) O-rings: Viton Measuring range: 1-100 l / min Accuracy: +/- 1.5% of the value p-max: 10 bar t-max: 50 ° C Connection: R 3/4 "or R 1" Installation length: 190 mm Installation position: horizontal, standing

  Make request
• RCDL M25 1"

  Vectra Viton pulse PFT-2 reed contact Liquid meter RCDL M25 without construction. Materials and technical data: Housing: Bronze Measuring chamber: Vectra O-rings: Viton Measuring range: 3-100 l / min Accuracy: +/- 1.5% of the value p-max: 10 bar t-max: ° C Connection: R 1 "outside Installation length: 190 mm Installation position: horizontal, standing 604011 Pulse PFT-2 reed contact about 52 PPL

  Make request
• RCDL M25 1" VECTRA VITON OHNE

  liquid meter

  Make request
• RCDL M25 3/4" ODER 1" PPO VITON OHNE IMPULSGEBER

  (Liquid meter RCDL M25 without Construction. Material and technical data: Housing: Nylon Measuring chamber: Noryl (PPO) O-rings: Viton Measuring range: 1-100 l / min Accuracy: +/- 1.5% of the value p-max: 10 bar t-max: 50 ° C Connection: R 3/4 "or R 1" Installation length: 190 mm Installation position: horizontal, vertical)

  Make request
• RCDL M25, WITH PULSE- TRANSMITTER PFT-1E - 52,4 PULSE/LITER SETUP

  Housing : Bronze Chamber : Noryl (PPO) O-Rings : Buna Flowrange : 1-100 l/min Accuracy : +/- 1,5 % of value p-max : 10 bar t-max : 50 °C Connection : Threads 1" male Laylength : 190mm Pulsoutput : Open Collector NPN Scale Factor : 0.00001 to 0.9999 Supply : 12-24 VDC Pulsoutput : S/N : Part-Nr. 141158

  Make request
• RCDL M70 1 1/4"

  Make request
• KT M2000 50

  MID M 2000 mit Flansch DN 50 1.4571

  Make request
• 106126

  Oval wheel counter

  Make request
• PN : MID M 1000, Type : Typ ModMAG M1000

  magnetic inductive flowmeter

  Make request
