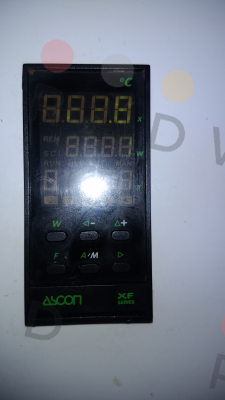

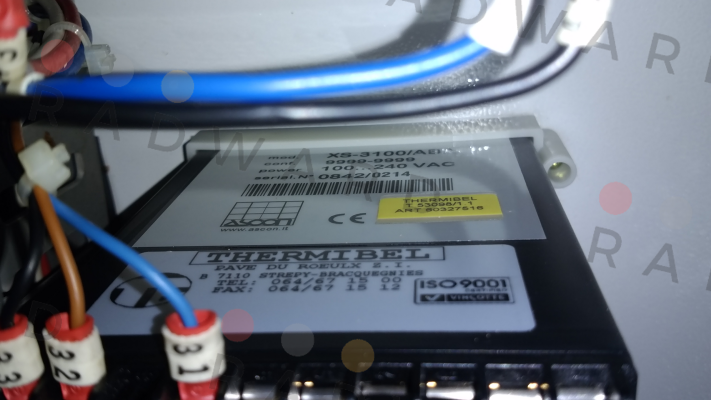

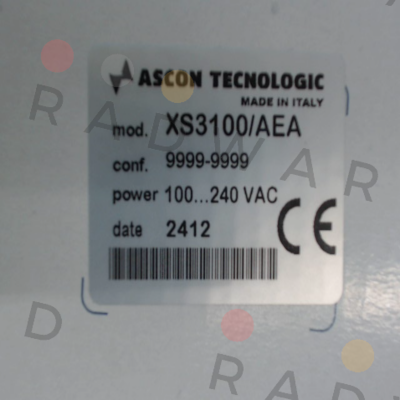

Ascon - XS-3100
| Manufacturer | Ascon |
|---|---|
| Part Number | XS-3100 |
| Inner Code | 487821 |
| Description | Digital controller series XS (unconfigured) |
| Custom Code | 90321020 |
| Technical specification | Supply voltage: 100... 240V, 50/60 Hz Interface: serial Protocol: ASCII Auxiliary output Y4: without Set value: fixed value controller - 1 internal setpoint and - 4 stored or 1 external setpoint (4-20 mA or 0-10 V) inputs: - Pt100, thermocouple (J, L, K, S, R), - standard signal 0 (4)... 20 mA or 0... (1) 10 V - 3 logic inputs or optional - 1 ext. Setpoint input Control output Y1: relay, logic or continuous (4... 20 mA or 0... 10 V) Control behavior: - 2 points (heating or cooling) or - 3-point (heating/cooling, PID, PI, PD, P) Auxiliary output Y2, Y3: alarm relay - configurable as deviation, band, limit or loop break alarm Dimensions: 96*48 mm (DIN), depth 150 mm Protection class: front IP54 default: - 24 V voltage output for ext. Transmitter - handheld control device (manual control variable setting) - Auto-tune and Expert-tune - CE mark options: - Continuous output (set or actual value, 4... 20 mA or 0... 10 V) - Program controller with (1 program with 11 segments) - IP65 front protection |
| Weight | 0.48 |
Please contact us to request a price quote for Ascon - XS-3100, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
