ARI - ARI-STEVI 441
| Manufacturer | ARI |
|---|---|
| Part Number | ARI-STEVI 441 |
| Inner Code | 4483741 |

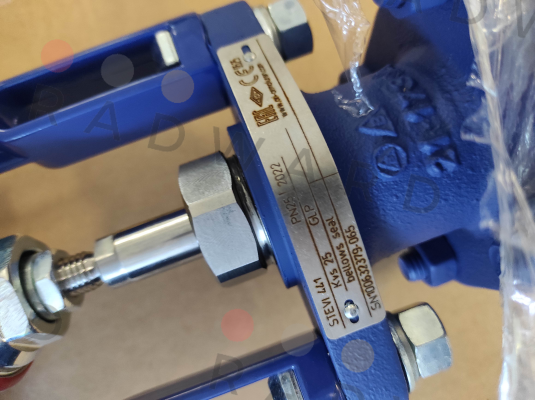

| Description | Straight control valve with flanges and bellows seal |
| Custom Code | 84818059 |
| Technical specification | Figure 23.441 DN 40 EN-JS1049 DN 40 Discount group: I11 Nominal pressure: PN 25 Flange drilling: according to DIN PN25 Kvs value: 25 Characteristic curve: equal percent Spindle seal: stainless steel bellows Safety stuffing box: pure graphite drive: PREMIO Valve stroke: 20 mm Drive type: PREMIO 2.2kN max. closing pressure (bar): 10.6 Motor type: Synchronous motor Voltage: 230 V 50/60 Hz Actuation speed: 0.38 mm/sec 0.45 mm/sec. Operating time: 53/45 s Spindle projection: 83 mm Coupling: M12 thread |
Please contact us to request a price quote for ARI - ARI-STEVI 441, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
