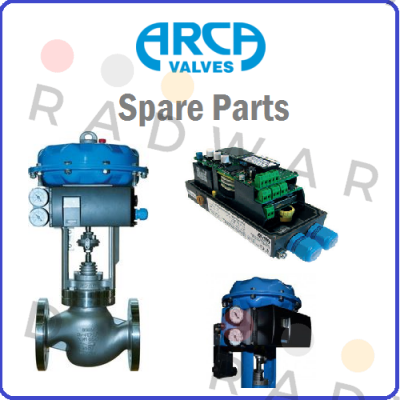

ARCA - F1.CW.101 - FCV.06
| Manufacturer | ARCA |
|---|---|
| Part Number | F1.CW.101 - FCV.06 |
| Inner Code | 4895203 |
| Description | Actuator |
| Technical specification | Usage: LANCE COOLING Medium: COOLING WATER QV-max (Nm3/h): 190,0000 P1 at Q max (bar a): 11,000 P2 at Q max (bar a): 9,000 T1 at Q max (°C): 40,000 QV-min (Nm3/h): 20,0000 P1 at Q min (bar a): 11,000 P2 at Q min (bar a): 3,000 T1 at Q min (°C): 40,000 Valve painting instruction: C2M multi-layer A2.06 Valve finish: RAL5015-sky blue Drive painting instruction: C2M twin/single powders Engine paint: RAL5015-sky blue Type plate 2: English Units type plate: bar, Kv, °C, mm Piping material: stainless steel Piping diameter: 10 mm pipe Screw connections material: galvanised steel Fittings Manufacturer: Standard Design in accordance with PED: yes Medium classification: Group 2 liquid PD<0.5bar Classification: Pressure-maintaining equipment Classification Category: I Design in accordance with: DIN EN 16668 ATEX: no MRL valve: complete machine Acceptance key: AS 01-3.1 Material evidence: APZ 3.1 Acceptance test certificate: APZ 3.1 not Hyg Test medium external tightness: water Seat tightness test medium: water Seat leakage tested according to: EN12266/EN1349 (Arca factory standard) PT pressure sample (bar g) input: 24 PT pressure sample (bar g) output: 24 Flow direction FIG.: 0.1 (flow versus closing) CTRL/handwheel control side: 0.1/L-R/6 dp (bar) in Ström. -Direction: 12 includes the following items: R-Vent DN125PN16 Type 6N1 GS-C25 3142763 84818059 Type 6N1-L1 (W4) Single-seat control valve DN 125 PN 16 Standard cover flange Connection on both sides: EN sealing strip form B1 Installation length: 400 mm Case Material: 1.0619 Cone Material: 1.4122 Seat material: 1.4021 nitrided 1-pc hole cone, kvs 150 characteristic =% Seat Ø 113 mm Class IV leakage Packing: 6226/6232 pneumatic. Antr. 812 MFIII-60.12-ATO 2180266 Type 812 MFIII-60.12-OE pneumatic. Stroke 60mm variable drive, function: ATO Spring actuation force of 14KN required air flow of 4.3 bar Membrane area: 720cm² 12 springs adjustment range 2.0-4.3 bar Version B tube reversible air flow M20x1.5 connection thread, diameter 72 mm Function: air opens - spring closes ST controller 827A.E2-A00-M10-G 2257107 Type 827A.E2-A00-M10-G Intelligent positioner Input 4-20mA, 2-wire connection IP 66 metal housing simple-looking with analog module, sensor 4 to 20 mA M20x1.5 cable outlet G 1/4 air connection 3121443 Hub indicator spindle coupling M20x1.5/M18x1.5 new version clamp design 2214650 Built-in positioner 827/812A POSITIONER MOUNTING KIT. Type 827 to 812 MFIII--60, integrated 2242329 F&R 961 1/4" NPT Mano 0-6 MS Poly Type 961 1/4" NPT filter and reducer Housing in aluminum, external parts in stainless steel Filter material: nylon fiber fabric 5 ìm Inlet: 1.4 to 18 bar g (250 psi) Output: adjustable 0 to 6 bar g with pressure gauge 0 to 6 bar/0-86 psi/MS/plastic Double nipple VA |
Please contact us to request a price quote for ARCA - F1.CW.101 - FCV.06, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
