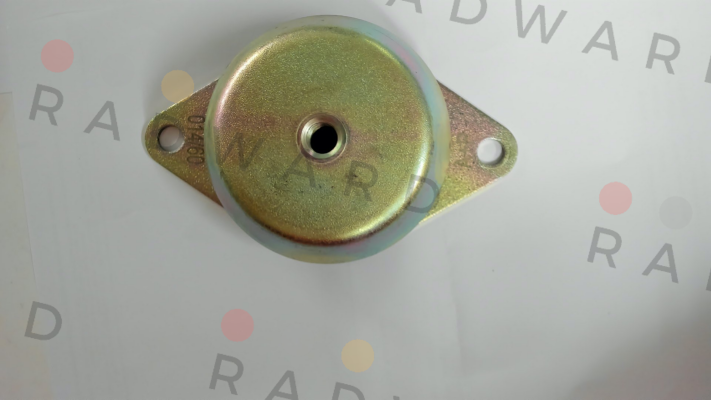

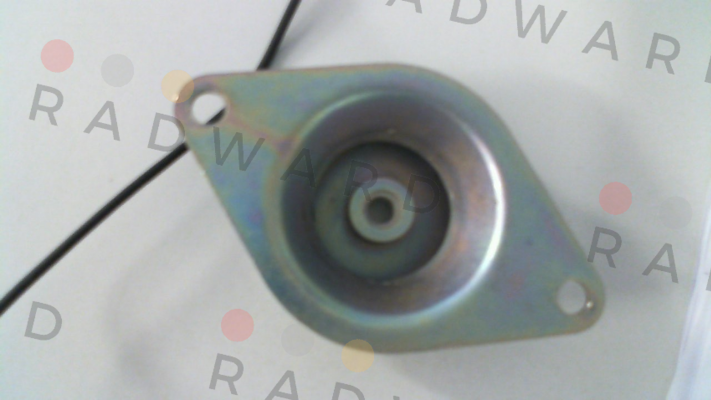

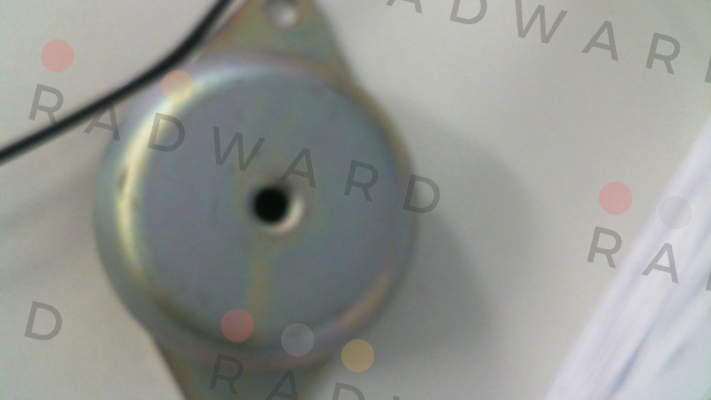

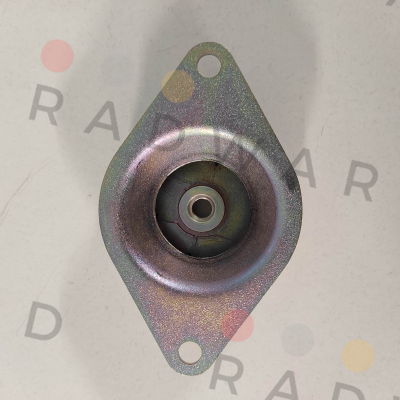

Angst-Pfister - 12.2064.0603
| Manufacturer | Angst-Pfister |
|---|---|
| Part Number | 12.2064.0603 |
| Inner Code | 4312566 |
| Description | Machine mount without screw |
| Custom Code | 40169900 |
| Technical specification | Material elastomer part:NR, black Material case:S235JR Version:Without height adjustment. Surface treatment:zinc-plated, chromated (CR VI free) Working temperature:from -30 to +80 °C Note to hardness:Spring rates have priority. soft ~45 Shore A; medium ~60 Shore A; hard ~70 Shore A EU guidelines:2002/95/EC (RoHS) Product description:The elements are characterised by a small overall height. The horizontal stiffness of the elements is higher than the vertical stiffness. Thereby so-called floatage can be avoided. Application:Universal applicable elements for the elastic bearings of machine. Attention:The insert nut (M10) may not be used as receptacle for Fz. The specified load capacity Fz is valid for the maximum static load. The elements are specified primarily of the frequency ratio and dynamic forces. |
Please contact us to request a price quote for Angst-Pfister - 12.2064.0603, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
