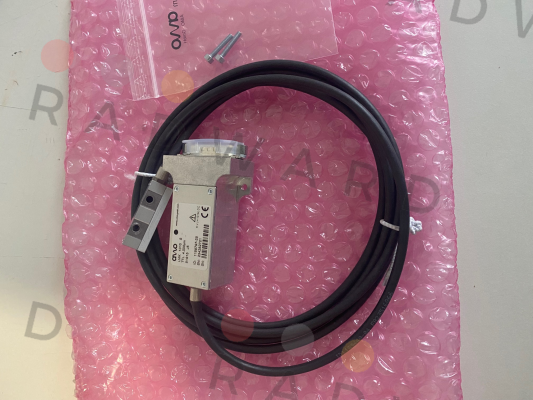

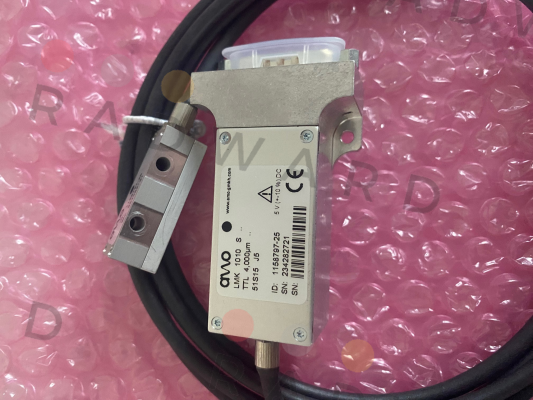

Amo - LMK 1010S .07RV..A3-A1- 2.00-51S15-J5 .. -001-83
| Manufacturer | Amo |
|---|---|
| Part Number | LMK 1010S .07RV..A3-A1- 2.00-51S15-J5 .. -001-83 |
| Inner Code | 4784862 |
| Custom Code | 90318020 |
| Technical specification | Measurement method: incremental Measuring principle: inductive Sensor head shape: Miniature, cable start on the right, with compact electronics included in the cable connector, Sub-D outlet height 8 mm Division period: 1000 μm Interface: TTL Incremental signals/ Multiplication: 250-times Signal period: 4,000 μm Max. scan rate: 20.00 kHz Power supply:5 V (+ -10%) DC Electrical connection: Sub-D connector, 2 rows, without locking screws, male, 15 pins Pin marking: D1164661 Cable length: 2.00 m |
Please contact us to request a price quote for Amo - LMK 1010S .07RV..A3-A1- 2.00-51S15-J5 .. -001-83, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
