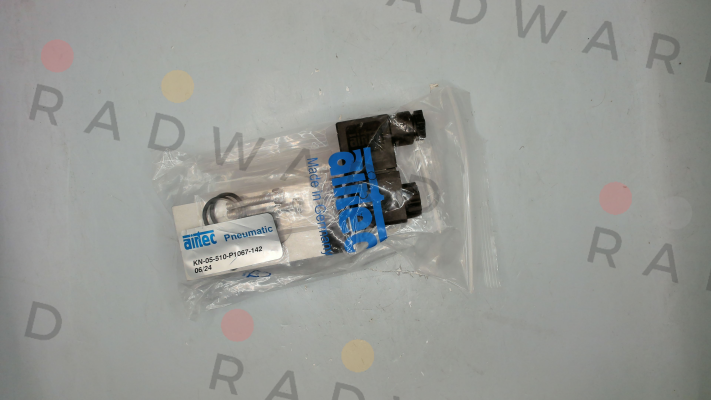

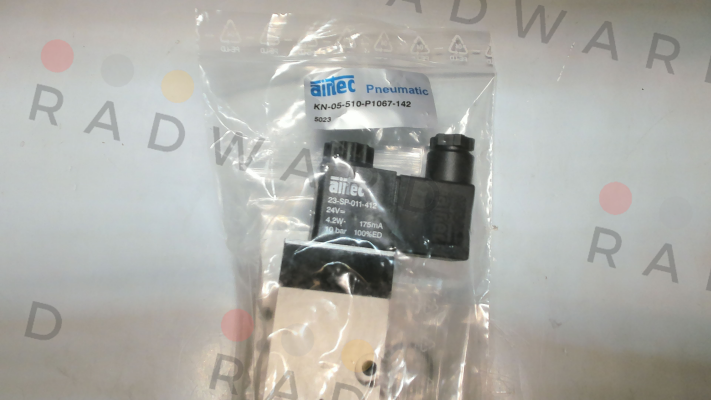

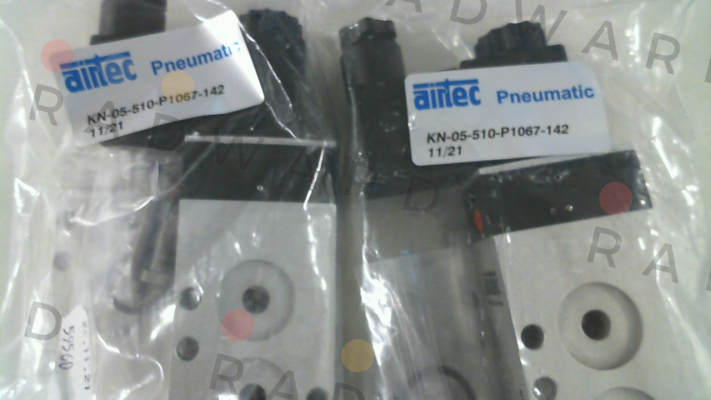

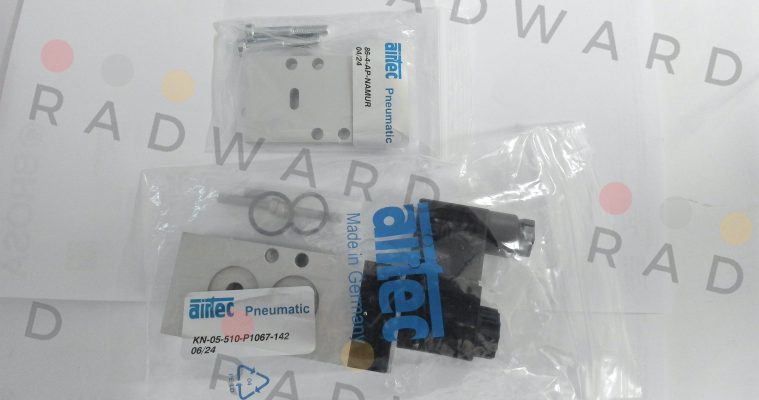

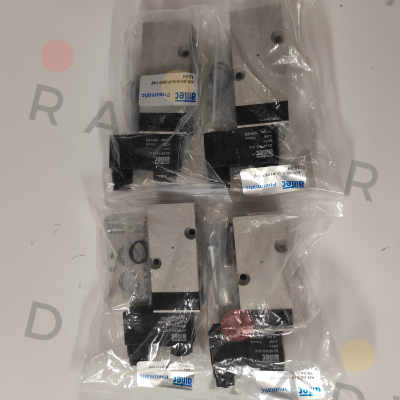

Airtec - 59560
| Manufacturer | Airtec |
|---|---|
| Part Number | 59560 |
| Inner Code | 4350462 |
| Description | 5/2-way NAMUR solenoid valve |
| Custom Code | 84812090 |
| Technical specification | 59560 5/2-3/2.KN-05-510-P1067-142-24/DC 5/2-3/2 way Flex NAMUR solenoid valve, series KN-05, piston valve with air spring, rest position closed, monostable, connection: G1/4, Namur, nominal size: 6mm, temperature range: -10°C to +70°C, housing: anodized aluminum, plastic, seals: NBR and OPM, internal parts: aluminum, stainless steel and brass, operating pressure: 3 to 10bar, flow rate: 900 Nl/min, protection class: IP65, with emergency manual operation, with coil and power outlet, DC 24V, included 86-4-AP-NAMUR turning plate for 3/2-way function and Connecting screws 2x 24-08-12-05 5/2-way NAMUR solenoid valve, series KN-05, electrically Operated spool valve with air spring, normal close, single solenoid, connection: G1/4, Namur, nominal size: 6mm, temp. range: -10°C.. +70°C, body: anodized aluminum, plastic, seals: NBR, inner parts: aluminum, steel and plastic, operating pressure: 3 - 10 bar, flow rate: 900 Nl/min, protection: IP65, with manual override, with coil And plug, DC - 24V, including converting plate type 86-4-AP-NAMUR to convert into 3/2-way function, within Assembling screws 2x 24-08-12-05 WT/CT: 8481 2090/EN |
Please contact us to request a price quote for Airtec - 59560, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
